Product Details:
Payment & Shipping Terms:
|
| Application: | Instrumentation, Heat Exchanger | Standard: | ASTM A269 A213 EN10216-5 |
|---|---|---|---|
| Steel Grade: | Stainless Steel | Type: | TP304 304L 316 316L 321 |
| Thickness: | 0.5 - 3.0MM | Shape: | Round |
| Outer Diameter: | 6 - 38.1MM | Product Name: | Seamless Stainless Steel Tube |
| Finish: | AP, BA, Polish | Quality: | EN10204 3.1 |
| High Light: | sanitary stainless steel tubing,304 stainless steel tube |
||

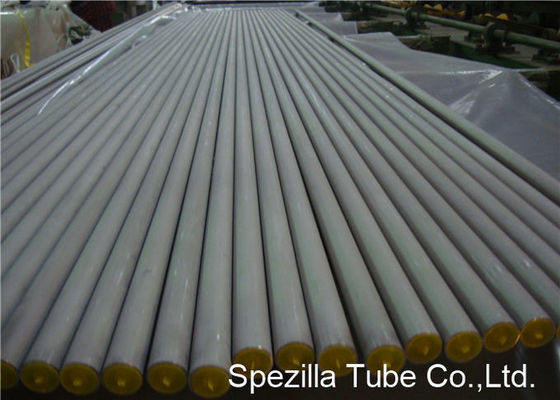

Seamless Stainless Steel Tube ASTM A213 TP316/316L , Bright Annealed Stainless Steel Tubing
Description:
Dual certified seamless stainless steel tubing of grades 304/304L & 316/316L are the workhorse grades for a variety of instrumentation and hydraulic applications. This material is stocked in 20 foot lengths in both welded and seamless production forms. Spezilla maintains extensive inventories in a wide range of instrumentation tube sizes in all of our warehouses.
1. No harder than Rockwell 80 seamless stainless steel tubing.
2. Tolerance ASTM A269
3. Capped tube ends
Spezilla seamless stainless steel tubing is generally Dual Grade where possible. Dual Grade means alloy with identical physical characteristics and only slightly different chemical characteristics are specification- controlled favoring the grade with the more refined chemical characteristics.
Surface Finish:
ASTM specifications are ambiguous on the subject of finishes. Instrumentation tubing should be free from nicks, gouges, and deep scratches which can interfere with proper sealing, particularly in gas service. Spezilla seamless stainless steel tubing incorporate packaging and preservation standards which ensure that the tubing arrives in proper condition for use in instrumentation systems.
Hardness:
All instrumentation tube fittings require that the tubing be softer than the fitting material. While most metal tubing is restricted to a maximum hardness measured on the Rockwell hardness scale, Spezilla seamless stainless steel tubing has a lower restricted maximum hardness. This restricted tolerance control lowers installed cost by allowing the tubing to be more easily bent and installed.
| Seamless Stainless Steel Tubing Chemical Composition Max. unless noted | ||||||||
| Weight % | C | Mn | P | S | Si | Ni | Cr | Mo |
| 304 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 8.00-11.00 | 18.00-20.00 | N/A |
| 304L | 0.03 | 2.00 | 0.045 | 0.030 | 1.00 | 8.00-12.00 | 18.00-20.00 | N/A |
| 316 | 0.08 | 2.00 | 0.045 | 0.030 | 1.00 | 10.00-14.00 | 16.00-18.00 | 2.0-3.0 |
| 316L | 0.03 | 2.00 | 0.045 | 0.030 | 1.00 | 10.00-14.00 | 16.00-18.00 | 2.0-3.0 |
| Seamless Stainless Steel Tubing Dimensions | ||||||
| OD | WT | LENGTH | GRADES | |||
| INCH | MM | INCH | MM | FT | MM |
304/304L, 316/316L |
| 1/4 | 6.35 | 0.035 | 0.889 | 20 | 6096 | |
| 1/4 | 6.35 | 0.049 | 1.245 | 20 | 6096 | |
| 1/4 | 6.35 | 0.065 | 1.650 | 20 | 6096 | |
| 3/8 | 9.53 | 0.035 | 0.889 | 20 | 6096 | |
| 3/8 | 9.53 | 0.049 | 1.245 | 20 | 6096 | |
| 3/8 | 9.53 | 0.065 | 1.650 | 20 | 6096 | |
| 1/2 | 12.70 | 0.035 | 0.889 | 20 | 6096 | |
| 1/2 | 12.70 | 0.049 | 1.245 | 20 | 6096 | |
| 1/2 | 12.70 | 0.065 | 1.650 | 20 | 6096 | |
| 5/8 | 15.88 | 0.035 | 0.889 | 20 | 6096 | |
| 5/8 | 15.88 | 0.049 | 1.245 | 20 | 6096 | |
| 5/8 | 15.88 | 0.065 | 1.650 | 20 | 6096 | |
| 3/4 | 19.05 | 0.035 | 0.889 | 20 | 6096 | |
| 3/4 | 19.05 | 0.049 | 1.245 | 20 | 6096 | |
| 3/4 | 19.05 | 0.065 | 1.650 | 20 | 6096 | |
| 1 | 25.40 | 0.035 | 0.889 | 20 | 6096 | |
| 1 | 25.40 | 0.049 | 1.245 | 20 | 6096 | |
| 1 | 25.40 | 0.065 | 1.650 | 20 | 6096 | |
