|Type:||Welded||Standard:||3A / ASTM A270|
|Length:||20FT||Surface Finish:||ID / OD Polished|
ASTM A270 stainless sanitary pipe,
16 Gauge stainless sanitary pipe,
ASTM A270 stainless sanitary tubing

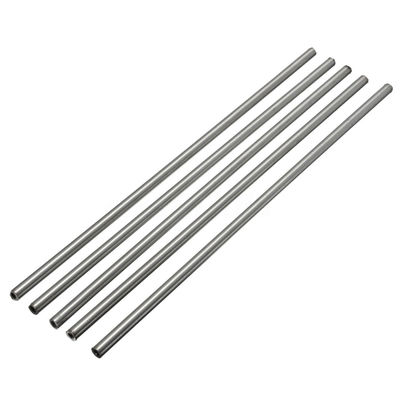

1'' OD 16 Gauge (0.065'') TP304 Polished 3A Stainless Steel Sanitary Tubing, Welded, 20' Length
Our tubes conform to ASME-BPE, 3A, ISO-SMS & BS 4825 standards with ASTM-A 270 specifications.
QUALITY RAW MATERIAL:
We source our stainless steel strips from POSCO. A company of global repute, trusted worldwide.
All tubes are marked with heat number on its surface. A well organized documentation plan ensures every tube can be tracked back to every stage of manufacturing.
We have ex-stock availability of almost all sizes grades and surface finishes. Option to order even small quantities as required.
CERTIFICATIONS & ACCREDITATION:
We manufacture tube for the global market. We are certified/ accredited with ISO 9001:2008 , 3A , PED 91/23/EC , AD 2000 MERKBLATT-W0, .
|Wall:||16 Gauge (0.065'')|
|OD Tolerance:||+/-0.005'' / +/-0.13MM|
|Length Tolerance:||+1/8'' / +3.18MM|
|Standard:||3A / ASTM A270 / A270M|
|Finish:||20Ra ID / 32Ra OD|
|Certification:||3A - Food / Dairy Grade|
|Mill Test Certificate:||EN10204 3.1|
|Packing:||Sleeved, Ends Capped, Wooden Boxed|
|C / Max.||0.08|
|Mn / Max||2.00|
|P / Max||0.045|
|S / Max||0.030|
|Si / Max||1.00|
|Ni||8.00 - 11.00|
|Cr||18.00 - 20.00|
We are one of the leading suppliers for tubes in the Food & Beverages industry. Our tubes are backed with years of our experience working with the beverages & breweries. We understand the requirement of the F&B industry better. The quality of the inner surface finish of the tube is very critical, when it comes to the transfer of aerated drinks, Fruit juices, Beer, wine etc. Be it the process lines, CIP / SIP lines, we have the right tubes that fit. Our in-house and proprietary process of electropolishing ensures a very high internal surface finish of the highest quality (Ra <0.38 μm).
Our stainless steel sanitary tubings are applicable to a wide range of manufacturing industries:
1. Food & Beverage
3. Wine & Brewery
