Product Details:
Payment & Shipping Terms:
|
| Thickness: | 0.5-1.0mm | Specification: | ASME SB338 |
|---|---|---|---|
| Product Name: | Welded Titanium Tubing | Material Grade: | GR.2 Gr.1 |
| Finish: | Bright Annealed | Size Range: | 6MM- 38.10MM |
| Length: | 20ft | Test Certificate: | EN10204 3.1 |
| Quality: | 100% Eddy Current | Finishing Options: | WLD |
| Packaging: | Wooden Boxed | ||
| High Light: | titanium tubing,titanium round tube |
||

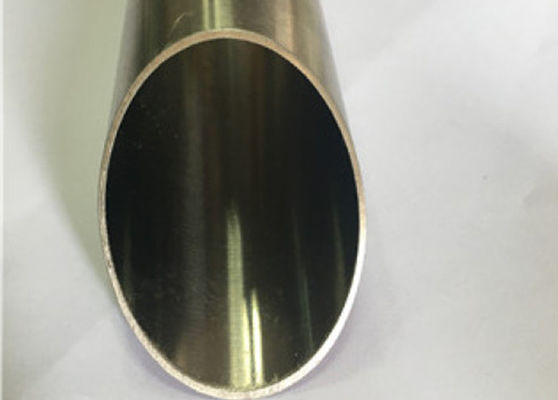

ASME SB338 Heat Exchanger Welded Titanium grade 2 Grede 1 Tubing
Titanium tubing are delivered in straight lengths or as U-bent tubing. Titanium spiral tubing, titanium capillary tubing are available by requirement. All the Titanium Tubing offered by us will pass strict test process.
Features:
Low density, High specific strength, Excellent corrosive resistance, No Rust, Good thermal stability, Good thermal conductivity, Biological features, Plasticity, etc.
Applications:
Industry field, aerospace, architectural, automotive, biomedical, chemical processing, marine, military, oil, tooling, racing.
Heat exchangers and condensers
All kinds of corrosive fluid transmission pipeline system
Titanium bicycle tube, automobile exhaust pipe
Offshore aquaculture
Inspection & Testing:
Ultrasonic testing, Electric non-destructive testing, Flaring testing, Hydrostatic testing, Flattening testing, Visual surface inspection, Dimensional inspection, Tensile properties inspection and Chemical elements analysis.
Advantage:
First-class product, Reasonable price, The fastest delivery.
100% Ultrasonic Test (UT), 100% Eddy Current Test(ET), 100% Pneumatic Test. 100% Hydraulic Test.
Typical Manufacturing Specifications:
ASTM B338
ASME SB338
Also individual customer specifications.
Available Tube Product Forms:
Straight Length.
Coiled.
Typical Applications:
Shell and tube heat exchanger, condenser, evaporator, pipeline, etc
Seawater desalination equipment
Bike rack
Marine pressure tube
Quality Assurance:
Spezilla's Titanium tubes are produced acc. to the following process and inspection to assure our quality:
1. Chemical Composition Analysis Test With 100% PMI.
2. Solution Annealing / Bright Annealed.
3. 100% Hydrostatic Test and 100% Eddy Current Test
4. Mechanical Tests includes Tension Test, Flattening Test, Flaring Test, Hardness Test.
5. Impact Test subject to Standard request.
6. Grain Size Test and Intergranular Corrosion Test.
7. Visual Test and Endoscope Test for Surface Quality Test
Titanium tubing
| Technique | Titanium Welded Tubing, Titanium Seamless Tubing |
| Grade | Gr1,Gr2, Gr3, Gr5, Gr7, Gr9, Gr11, Gr12, Gr23 |
| Standard | ASTM B337,ASTM B338,ASTM B861,ASTM B862,DIN 17861 |
| Size | OD(0.5-300)mm*WT(0.1-25)mm*L(MAX 20000)mm |
| Shape | Round, Square |
| Surface | Polished or According To Customer's Requirement |
| Packing | Seaworthy Wooden Case |
Our extensive selection includes seamless aircraft quality titanium tubing, welded titanium tubing, drawn titanium tubing. Browse our selection of aircraft quality titanium tubing here or get in touch with a Future Metals professional for a personalized quote on aircraft quality titanium Tube.
| Alloy | UNSNumber | C | Mn Max | Ni Min | Ni Max | Cr Min | Cr Max | Mo Min | Mo Max | Density g/cm3 | Density lb/in3 | UTS KSI | UTS MPA | YS KSI | YS MPA | % El in 2" |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ti CP (Grade 2) | R50400 | 0.1 | 0.15 | 4.5 | 0.162 | 80 | 552 | 40/60 | 276/414 | 20 |
Chemical composition reference analysis (as weight %)
| ASTM Grade | Nominal Composition |
Forms | ||
|---|---|---|---|---|
| Cold-Reduced | Hot-Rolled | Hot-Extruded | ||
| Grade 1 | Ti | x | x | x |
| Grade 2 | Ti | x | x | x |
| Grade 4 | Ti | x | x | x |
| Grade 7 | Ti (Gr2) 0.2 Pd | x | x | |
| Grade 12 | Ti- 0.3Mo-0.8Ni | x | x | x |
| Grade 16 | Ti (Gr2) 0.07 Pd | x | x | x |
| Products | Processing Standard | Grade | Size |
| Titanium Welded Tube, Pipe | ASME SB338, ASME SB862 | GR1, GR2, GR7, GR12 |
OD: (0.315”-48”) WT: (0.0197”-0.5”) Length: at random length |
