Product Details:
Payment & Shipping Terms:
|
| Product Name: | Welded Titanium Tubing | Specification: | ASME SB338 ASTM B338 |
|---|---|---|---|
| Size Range: | 6MM- 38.10MM | Thickness: | 0.5-1.0mm |
| Length: | 20ft | Test Certificate: | EN10204 3.1 |
| Quality: | 100% Eddy Current | Finishing Options: | WLD |
| Material Grade: | GR.2 Gr.1 | Finish: | Bright Annealed |
| Packaging: | Wooden Boxed | ||
| High Light: | titanium tubing,titanium round tube |
||

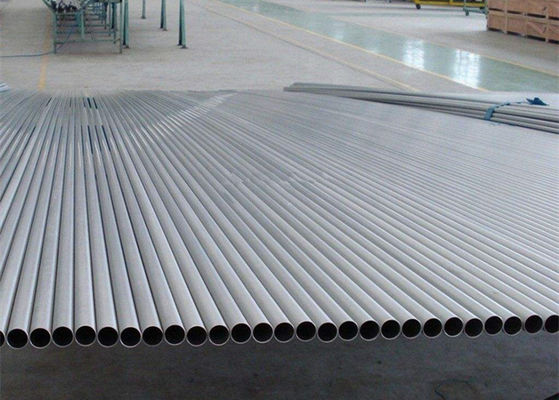

ASME SB338 Welded Titanium grade 2 Tubing,Grade 1 Titanium Pipe
Titanium is 30% stronger than steel, but is nearly 50% lighter. Titanium is 60% heavier than aluminum, but twice as strong. Titanium has excellent strength retention to 1,000 degrees Fahrenheit. Titanium is alloyed with aluminum, manganese, iron, molybdenum and other metals to increase strength, to withstand high temperatures, and to lighten the resultant alloy. Titanium’s high corrosion resistance is also a valuable characteristic; as when exposed to the atmosphere, titanium forms a tight, tenacious oxide film that resists many corrosive materials, particularly salt water.
Titanium pipe from SPEZILLA. High-quality commercially pure grade 2 seamless and welded titanium pipe (ASTM B861) in a wide range of shapes and sizes. Our seamless pipe is available in 1/8″ to 6″ sizes and welded pipe can be purchased in 1″ through 24″ sizes. We’re focused on providing the exact specifications you need with a fast turnaround and delivery. Furthermore, we work with many different industries, from automotive to marine, and we can work closely with you to determine the needs of your unique project.
Titanium Grade 1 is an unalloyed, low strength titanium product containing low oxygen with high formability; this titanium grade is used in airframes, heat exchangers and desalination units.
Titanium Grade 2 is an unalloyed, medium strength titanium product. This titanium grade is used in airframes, aircraft engines, and marine parts; good weldability and corrosion resistance are its distinguishing characteristics.
Titanium Grade 3 is an unalloyed, high strength, titanium product providing excellent corrosion resistance and good weldability. This titanium grade is primarily used in airframe and aircraft engine parts.
Titanium Grade 4 is the highest strength pure unalloyed titanium product. This titanium grade is used almost exclusively for airframe, aircraft engine parts, marine, surgical implants, hydraulic tubing. Good formability and corrosion resistance are its hallmark.
Titanium Grade 5 (6AL-4V)is an alloyed titanium product containing 6% Aluminum and 4% Vanadium; is a medium strength product. This titanium grade is predominantly used in airframe and turbine engine parts; and for use in surgical implants. Technical Info
Our extensive selection includes seamless aircraft quality titanium tubing, welded titanium tubing, drawn titanium tubing. Browse our selection of aircraft quality titanium tubing here or get in touch with a Future Metals professional for a personalized quote on aircraft quality titanium Tube.
Typical Manufacturing Specifications:
ASTM B338
ASME SB338
Also individual customer specifications.
Available Tube Product Forms:
Straight Length.
Coiled.
Typical Applications:
Shell and tube heat exchanger, condenser, evaporator, pipeline, etc
Seawater desalination equipment
Bike rack
Marine pressure tube
Quality Assurance:
Spezilla's Titanium tubes are produced acc. to the following process and inspection to assure our quality:
1. Chemical Composition Analysis Test With 100% PMI.
2. Solution Annealing / Bright Annealed.
3. 100% Hydrostatic Test and 100% Eddy Current Test
4. Mechanical Tests includes Tension Test, Flattening Test, Flaring Test, Hardness Test.
5. Impact Test subject to Standard request.
6. Grain Size Test and Intergranular Corrosion Test.
7. Visual Test and Endoscope Test for Surface Quality Test
| Alloy | UNSNumber | C | Mn Max | Ni Min | Ni Max | Cr Min | Cr Max | Mo Min | Mo Max | Density g/cm3 | Density lb/in3 | UTS KSI | UTS MPA | YS KSI | YS MPA | % El in 2" |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ti CP (Grade 2) | R50400 | 0.1 | 0.15 | 4.5 | 0.162 | 80 | 552 | 40/60 | 276/414 | 20 |
Description:
| Item Code: | SPW-G-GR.2 |
| Tube OD.: | 6.00MM - 38.10MM |
| Wall: | 0.50MM - 2.0MM |
| Length: | 6000MM - 12000MM |
| Material: | Titanium Gr.2 |
| Standard: | ASTM B338, ASME SB338 |
| Finish: | Welded |
| Type: | Welded |
| Certification: | ISO9001:2015 |
| Mill Test Certificate: | EN10204 3.1 |
| Packing: | Wooden Boxed |
Chemical composition reference analysis (as weight %)
| ASTM Grade | Nominal Composition |
Forms | ||
|---|---|---|---|---|
| Cold-Reduced | Hot-Rolled | Hot-Extruded | ||
| Grade 1 | Ti | x | x | x |
| Grade 2 | Ti | x | x | x |
| Grade 4 | Ti | x | x | x |
| Grade 7 | Ti (Gr2) 0.2 Pd | x | x | |
| Grade 12 | Ti- 0.3Mo-0.8Ni | x | x | x |
| Grade 16 | Ti (Gr2) 0.07 Pd | x | x | x |
| Products | Processing Standard | Grade | Size |
| Titanium Welded Tube, Pipe | ASME SB338, ASME SB862 | GR1, GR2, GR7, GR12 |
OD: (0.315”-48”) WT: (0.0197”-0.5”) Length: at random length |
| UNS | Proof strength Rp0.2 MPa min |
Tensile strength Rm MPa min |
Elongation A % min |
|---|---|---|---|
| R50250 | 138-310 | 240 | 24 |
| R50400 | 275-450 | 345 | 2 |
| R50550 | 380-550 | 450 | 18 |
| R52400 | 275-450 | 345 | 20 |
| R56320 | 483 | 620 | 15 |
| R52250 | 138-310 | 240 | 24 |
| R53400 | 345 | 483 | 18 |
| R52402 | 275-450 | 345 | 20 |
| R52252 | 138-310 | 240 | 24 |
| R52404 | 275-450 | 345 | 20 |
| R52254 | 483 | 620 | 15 |
| R60702 | 380 | 205 | 16 |
| Products | Processing Standard | Grade | Size |
| Titanium Welded Tube, Pipe | ASME SB338, ASME SB862 | GR1, GR2, GR7, GR12 |
OD: (0.315”-48”) WT: (0.0197”-0.5”) Length: at random length |
