TP405 409 410 439 Ferritic Stainless Steel Tube ASTM A268 6096mm Length

TP405 409 410 439 Ferritic Stainless Steel Tube ASTM A268 6096mm Length
TP405 409 410 439 Ferritic Stainless Steel Tube ASTM A268 6096mm Length TP405 409 410 439 Ferritic Stainless Steel Tube ASTM A268 6096mm Length TP405 409 410 439 Ferritic Stainless Steel Tube ASTM A268 6096mm Length TP405 409 410 439 Ferritic Stainless Steel Tube ASTM A268 6096mm Length

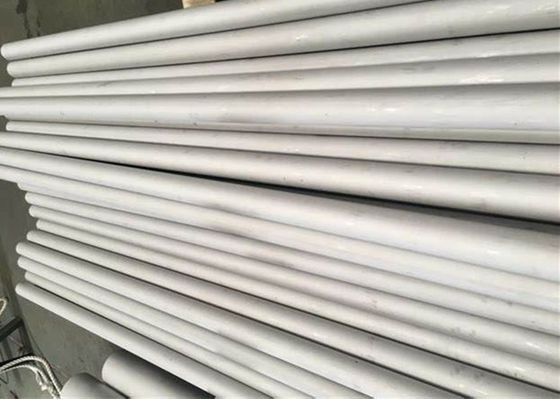

Large Image :  TP405 409 410 439 Ferritic Stainless Steel Tube ASTM A268 6096mm Length

Product Details:
Place of Origin: CHINA
Brand Name: SPEZILLA
Certification: ISO9001, TS16949, PED, AD2000
Model Number: SMLS
Payment & Shipping Terms:
Minimum Order Quantity: 500KGS
Price: NEGOCIATION
Packaging Details: WOODEN BOXED
Delivery Time: Ex-Mill 15 - 30DAYS
Payment Terms: T/T, L/C
Supply Ability: 100TONS/MONTH
Detailed Product Description
Material Grade: TP405 409 410 439 Size Range: 5/8"-2"
WT: BWG18-BWG12 Length: 6096mm
Specification: ASTM A268, ASME SA268 Finishing Options: Pickling, Polishing, Custom Cutting
Test Certificate: EN10204 3.1 Packaging: Wooden Box, Bundled, Export Packaging Available
Application: Boiler,Heat Exchanger Shape: Round
Product Name: TP410 Ferritic Stainless Steel Tube
High Light:

rolled stainless steel tubing

,

high pressure stainless steel pipe

TP405 409 410 439 Stainless Steel Tube ASTM A268 400 Ferritic Stainless Steel Pipe





Ferritic steels are high chromium (10.5% - 27%), magnetic stainless steels with a low carbon content and little to no nickel content. With the increase of chromium content, its corrosion resistance, toughness and weldability improve correspondently. Its resistance to chloride stress corrosion is superior to other types of stainless steel. The common ferritic grades are Crl7, Cr17Mo2Ti, Cr25, Cr25Mo3Ti, Cr28 and the like.

Features of Ferritic Stainless Steel

Ferritic stainless steel features high corrosion resistance and oxidation resistance due to its high chromium content, but its mechanical properties and machinability are poor. It is widely applied to acid-resistant structures with little stress and is used as anti-oxidation steel. This steel type can resist the corrosion of atmospheric, nitric acid and saline solution. It features high temperature oxidation resistance and small thermal expansion coefficient. It can be used in nitric acid and food factory equipment, and can also be used to produce parts working at high temperature, such as gas turbine parts.





Quality Assurance:


Spezilla's seamless bright annealed stainless steel tubes are produced acc. to the following process and inspection to assure our quality:

1. Chemical Composition Analysis Test With 100% PMI.

2. Solution Annealing / Bright Annealed.

3. 100% Hydrostatic Test and 100% Eddy Current Test

4. Mechanical Tests includes Tension Test, Flattening Test, Flaring Test, Hardness Test.

5. Impact Test subject to Standard request.

6. Grain Size Test and Intergranular Corrosion Test.

7. Visual Test and Endoscope Test for Surface Quality Test

Chemical Composition

The chemical composition of grade 405 stainless steel is outlined in the following table.



Iron, Fe 85
Chromium, Cr 13
Manganese, Mn 1.0
Silicon, Si 1.0
Aluminum, Al 0.2
Carbon, C 0.080
Phosphorous, P 0.040
Sulfur, S 0.030





Item Code: TP405
Tube OD.: 1/4'' - 2''
Wall: 0.028'' - 0.120''
Length: 20FT
Material: 405
Standard: ASTM A268 ASME SA268
Finish: Annealed & Pickled.
Type: Seamless Cold Drawn
Certification: ISO9001:2015
Mill Test Certificate: EN10204 3.1
Packing:

Sleeved, Wooden Boxed



Typical Manufacturing Specifications:


ASTM A268



ASME SA268



TP405 is a typical martensitic chromium-alloy steel grade. It does not have the nickel content and owns the following characteristic:


- Harding by heat treatment
- High hardness with good ductility
- Good corrosion resistance capability
- Good wear corrosion resistance
- High cold-deformation property



Available Tube Product Forms:

Straight.


Coiled.



Typical Applications:



Used for parts requiring a combination of good strength and toughness, plus reasonable corrosion resistance. Typical applications are: Bolts, Bushings, Fasteners, Gas Turbine Parts, Mine Equipment, Pump Parts, Petrochemical Equipment, Steam Turbine Parts, Studs, Valve Parts etc.

Material magnetic in all conditions.



405 - UNS S40500:

AISI Type 405 is a martensitic stainless steel that provides high strength and hardness with moderate corrosion resistance. A wide range of properties can be developed with different heat treatments, with ultimate tensile strengths ranging from 500 to 1400 MPa. It is magnetic in both the annealed and hardened conditions. High carbon content results in the formation of chromium carbide compounds, providing excellent wear resistance and edge retention when hardened. Additionally, this grade provides excellent high temperature oxidation and scaling resistance, yet is economical due to the low alloy content. Thermal conductivity is improved and thermal expansion reduced relative to austentic stainless grades.



Physical Properties:

  • Melting Point: 2729°F / 1495°C
  • Density: 0.276 lb/in3 / 7.65 g/cm3
  • Specific Graivy: 7.65
  • Modulus of Elasticity in Tension: 29 X 106 psi / 200 GPa



Mechanical Properties:

  • Temper: Annealed
  • Tensile Strength Minimum (psi): 65,000
  • Yield Strength Minimum 0.2% offset (psi): 30,000
  • % Elongation in 2” Minimum: 20%
  • Hardness: Rockwell B80
  • Temper: Hardened + 350°F
  • Tensile Strength Minimum (psi): 205,000
  • Yield Strength Minimum 2% offset (psi): 185,000
  • % Elongation in 2": 8%
  • Hardness: Rockwell C40



Composition:

  • Carbon: 0.08 - 0.15
  • Manganese: 1.00
  • Phosphorus: 0.040
  • Sulfur: 0.030
  • Silicon: 1.00
  • Chromium: 11.50-13.50
  • Iron: Balance
  • All values are maximum values unless otherwise specified. Values derived from applicable AMS and ASTM specifications.




5% Test
Solution at 120°F
(49°C)
Corrosion Rate in Mils per Year and Millimeters per Year (mm/a)
Alloy 409 Alloy 410S Alloy 420 Alloy 425 Mod Alloy 440A Alloy 430
Acetic Acid 0.88
(0.022)
0.079
(0.002)
1.11
(0.028)
4.79
(0.122)
2.31
(0.0586)
0.025
(0.0006)
Phosphoric Acid 0.59
(0.002)
0.062
(0.002)
0.068
(0.002)
0.593
(0.015)
0.350
(0.009)
0.029
(0.001)







ASTM A268 Tp410 tube composition:



Grade: TP405 TP410 TP249 TP430 TP443 TP446-1 TP446-2 TP409
UNS S40500 S41000 S42900 S43000 S44300 S44600 S44600 S40800 S40900
C, max 0.08 0.15 0.12 0.12 0.20 0.20 0.12 0.08 0.08
Mn,max 1.00 1.00 1.00 1.00 1.00 1.50 1.50 1.00 1.00
P, max 0.04 0.04 0.04 0.04 0.04 0.04 0.04 0.045 0.045
S, max 0.03 0.03 0.03 0.03 0.03 0.03 0.03 0.045 0.045
Si, max 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00
Ni 0.50max 0.75max 0.75max 0.50max 0.80max 0.50max
Cr 11.5-14.5 11.5-13.5 14.0-16.0 16.0-18.0 18.0-23.0 23.0-27.0 23.0-27.0 11.5-13.0 10.5-11.7
Mo
Al 0.10-0.30
Cu 0.90-1.25
N 0.25 0.25 12xCmin 6xCmin
Ti 1.10max 0.75max







Chemical Composition
  Min. % Max %
Carbon 0.09 0.15
Silicon 0 1.00
Manganese 0 1.00
*Nickel 0 1.00
Chromium 11.50 13.50
Phosphorous 0 0.04
Sulphur 0 0.03
*Nickel additional option
