Product Details:
Payment & Shipping Terms:
|
| Type: | SS Capillary Tubes | Standard: | ASTM/AISI ,GB,JIS,DIN,EN,etc |
|---|---|---|---|
| Material Grade: | TP316/316L 304L | Application: | Liquid Lines |
| Outer Diameter: | 4mm-10mm | Wall Thickness: | 0.3mm-2mm |
| Length: | Cut Into Pcs | Process Method: | Welded,precision Rolled,cold Drawn |
| Surface Finish: | 180G, 320G, 400G Satin / Hairline,400G, 500G, 600G Or 800G Mirror Finish | Package: | Wooden Case |
| Shape: | Round | ||
| High Light: | stainless steel capillary tube,steel capillary tube |
||

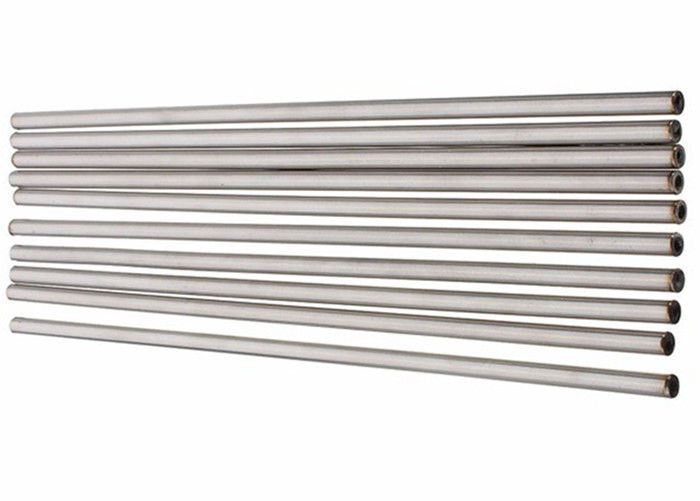

Austenite Stainless Steel TP316 304L capillary pipes Small Diameter Tubing
Capillary Pipes Tubes &OCTG, CRA (Corrosion-Resistant Alloy) Seamless Tubes,Stainless Steel , Super Duplex , Duplex , Welded & Seamless, Carbon Steel Seamless Pipes, Tubes, Capillary Pipes & ‘U’ Tubes for applications in oil & gas, LNG, Thermal & Nuclear Power Plants, Chemical Industries, Fertilizers Plants, (petro) chemical, shipbuilding, desalination, water treatment, energy industries, EPC and Pipes for General Engineering Purpose.
RANGE of Stainless Steel Capillary pipes and tubes:
0.35mm to 6.35mm OD in thickness ranging from 0.1mm to 1.2mm.
TYPE:
SEAMLESS / ERW / WELDED/ SEMI-SEAMLESS / FABRICATED
Grade of stainless steel capillary pipes & tubes:
304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L.
Non-Ferrous Capillary pipes & tubes:
Inconel, Monel, Hastelloy, Copper, Brass, Nickel, Copper-nickel alloys, Copper alloys, nickel alloys, duplex stainless steel and other types of steels.
FORM:
ROUND, STRAIT, HYDRAULIC ETC.
LENGTH:
SINGLE RANDOM, DOUBLE RANDOM , COIL FORM, CUT LENGTH
END:
PLAIN END, BEVELED END.
Manufacturing to: ASTM A269, DIN 17458/EN10216-5 TC1, D3/T3, D4/T3 NACE MR.01.75/77, Cert To EN 10204 3.1
T est: 100% Eddy Test or Hydrostatic Test, UT Test
Delivery Condition: Annealed & Pickled, Annealed & Pickled + Polished
Capillary tubes are used in applications, such as:
Advantage:
• Advanced production and inspection equipment
• Top quality control system and service system
• Professional & Sincerity
• Competitive Price
• Good Reputation
• Timely Delivery
1. Products Specification
| Stainless Steel capillary tubes for medical needle Grade | Straight/ Coil tubing TP 304, TP 304L, TP 316/316L, TP321, TP316SS TP310S/ Incoloy800/825/600/625/718 Monel400/ K-50 etc. |
| Stainless Steel capillary tubes for medical needle Standard | Straight/ Coil tubing ASTM, GB, AISI, JIS, DIN,EU |
| Stainless Steel capillary tubes for medical needle Diameter | Straight/ Coil tubing 0.33mm-76mm |
| Stainless Steel capillary tubes for medical needle Thickness | Straight/ Coil tubing 0.1mm-3.0mm |
| Stainless Steel capillary tubes for medical needle Length | Straight/ Coil tubing Depending on your requirement 50-2000meters |
| Stainless Steel capillary tubes for medical needle Technique | Straight/ Coil tubing Cold drawing, precision rolling |
2. Chemical Element Analysis
|
Type |
Chemical Composition(%) |
|||||||||
|
ASTM |
C |
Cr |
Ni |
Mn |
P |
S |
Mo |
Si |
Cu |
N |
|
TP304 |
≤0.08 |
18.0-20.0 |
8.0-11.0 |
≤2.00 |
≤0.045 |
≤0.030 |
- - - |
≤1.00 |
- - - |
- - - |
|
TP304L |
≤0.035 |
18.0-20.0 |
8.0-13.0 |
≤2.00 |
≤0.045 |
≤0.030 |
- - - |
≤1.00 |
- - - |
- - - |
|
TP304H |
0.04-0.10 |
18.0-20.0 |
8.0-11.0 |
≤2.00 |
≤0.045 |
≤0.030 |
- - - |
≤1.00 |
- - - |
- - - |
|
TP310S |
≤0.08 |
24.0-26.0 |
19.0-22.0 |
≤2.00 |
≤0.045 |
≤0.030 |
≤0.75 |
≤1.00 |
- - - |
- - - |
|
TP316 |
≤0.08 |
16.0-18.0 |
11.0-14.0 |
≤2.00 |
≤0.045 |
≤0.030 |
2.00-3.00 |
≤1.00 |
- - - |
- - - |
|
TP316L |
≤0.035 |
16.0-18.0 |
10.0-14.0 |
≤2.00 |
≤0.045 |
≤0.030 |
2.00-3.00 |
≤1.00 |
- - - |
- - - |
|
TP316N |
≤0.08 |
16.0-18.0 |
11.0-14.0 |
≤2.00 |
≤0.045 |
≤0.030 |
2.00-3.00 |
≤1.00 |
- - - |
0.10-0.16 |
|
TP317L |
≤0.035 |
18.0-20.0 |
11.0-15.0 |
≤2.00 |
≤0.045 |
≤0.030 |
3.0-4.0 |
≤1.00 |
- - - |
- - - |
|
TP321 |
≤0.08 |
17.0-19.0 |
9.0-12.0 |
≤2.00 |
≤0.045 |
≤0.030 |
- - - |
≤1.00 |
- - - |
≤0.10 |
|
TP321H |
0.04-0.10 |
17.0-19.0 |
9.0-12.0 |
≤2.00 |
≤0.045 |
≤0.030 |
- - - |
≤1.00 |
- - - |
- - - |
|
TP347 |
≤0.08 |
17.0-19.0 |
9.0-13.0 |
≤2.00 |
≤0.045 |
≤0.030 |
- - - |
≤1.00 |
- - - |
- - - |
