Product Details:
Payment & Shipping Terms:
|
| Standard: | ASTM/AISI ,GB,JIS,DIN,EN,etc | Application: | Gas Medical |
|---|---|---|---|
| Material Grade: | SS304 316L | Outer Diameter: | 4mm-10mm |
| Wall Thickness: | 0.3mm-2mm | Length: | Cut Into Pcs |
| Process Method: | Welded,precision Rolled,cold Drawn | Surface Finish: | 180G, 320G, 400G Satin / Hairline,400G, 500G, 600G Or 800G Mirror Finish |
| Type: | High Precision Stainless Steel Tubing / Tube | Package: | Wooden Case |
| High Light: | stainless steel capillary tube,metal capillary tube |
||

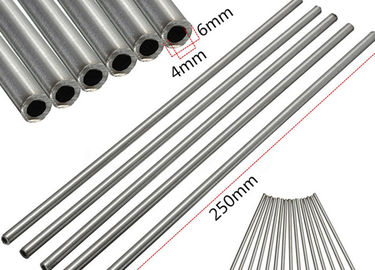

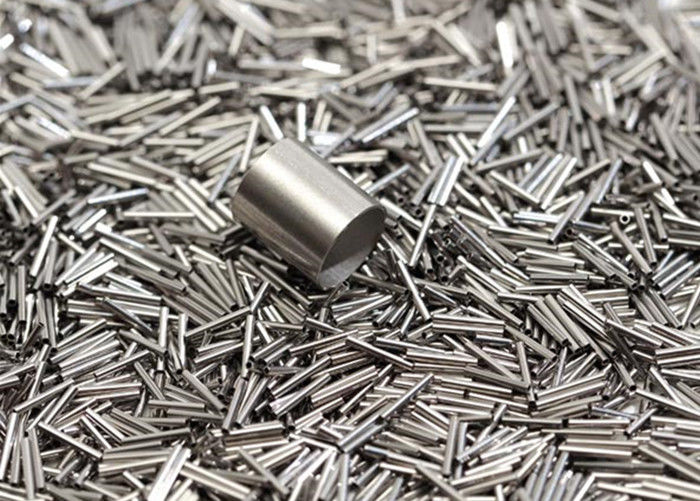

SS 304 316 capillary tubes High Precision Welded & Cold Drawn Tubing
Stainless steel capillaries are used for automated instrumentation signal tubes, automated instrumentation wire protection tubes, etc.
Good softness, corrosion resistance, high temperature resistance, abrasion resistance, tensile strength and water resistance
RANGE of Stainless Steel Capillary pipes and tubes:
0.35mm to 6.35mm OD in thickness ranging from 0.1mm to 1.2mm.
TYPE:
SEAMLESS / ERW / WELDED/ SEMI-SEAMLESS / FABRICATED
Grade of stainless steel capillary pipes & tubes:
304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L.
Non-Ferrous Capillary pipes & tubes:
Inconel, Monel, Hastelloy, Copper, Brass, Nickel, Copper-nickel alloys, Copper alloys, nickel alloys, duplex stainless steel and other types of steels.
FORM:
ROUND, STRAIT, HYDRAULIC ETC.
LENGTH:
SINGLE RANDOM, DOUBLE RANDOM , COIL FORM, CUT LENGTH
END:
PLAIN END, BEVELED END.
Manufacturing to: ASTM A269, DIN 17458/EN10216-5 TC1, D3/T3, D4/T3 NACE MR.01.75/77, Cert To EN 10204 3.1
T est: 100% Eddy Test or Hydrostatic Test, UT Test
Delivery Condition: Annealed & Pickled, Annealed & Pickled + Polished
Capillary tubes are used in applications, such as:
Advantage:
• Advanced production and inspection equipment
• Top quality control system and service system
• Professional & Sincerity
• Competitive Price
• Good Reputation
• Timely Delivery
Capillary Pipes Tubes &OCTG, CRA (Corrosion-Resistant Alloy) Seamless Tubes,Stainless Steel , Super Duplex , Duplex , Welded & Seamless, Carbon Steel Seamless Pipes, Tubes, Capillary Pipes & ‘U’ Tubes for applications in oil & gas, LNG, Thermal & Nuclear Power Plants, Chemical Industries, Fertilizers Plants, (petro) chemical, shipbuilding, desalination, water treatment, energy industries, EPC and Pipes for General Engineering Purpose.
1. Products Specification
| Stainless Steel capillary tubes for medical needle Grade | Straight/ Coil tubing TP 304, TP 304L, TP 316/316L, TP321, TP316SS TP310S/ Incoloy800/825/600/625/718 Monel400/ K-50 etc. |
| Stainless Steel capillary tubes for medical needle Standard | Straight/ Coil tubing ASTM, GB, AISI, JIS, DIN,EU |
| Stainless Steel capillary tubes for medical needle Diameter | Straight/ Coil tubing 0.33mm-76mm |
| Stainless Steel capillary tubes for medical needle Thickness | Straight/ Coil tubing 0.1mm-3.0mm |
| Stainless Steel capillary tubes for medical needle Length | Straight/ Coil tubing Depending on your requirement 50-2000meters |
| Stainless Steel capillary tubes for medical needle Technique | Straight/ Coil tubing Cold drawing, precision rolling |
2. Chemical Element Analysis
|
Type |
Chemical Composition(%) |
|||||||||
|
ASTM |
C |
Cr |
Ni |
Mn |
P |
S |
Mo |
Si |
Cu |
N |
|
TP304 |
≤0.08 |
18.0-20.0 |
8.0-11.0 |
≤2.00 |
≤0.045 |
≤0.030 |
- - - |
≤1.00 |
- - - |
- - - |
|
TP304L |
≤0.035 |
18.0-20.0 |
8.0-13.0 |
≤2.00 |
≤0.045 |
≤0.030 |
- - - |
≤1.00 |
- - - |
- - - |
|
TP304H |
0.04-0.10 |
18.0-20.0 |
8.0-11.0 |
≤2.00 |
≤0.045 |
≤0.030 |
- - - |
≤1.00 |
- - - |
- - - |
|
TP310S |
≤0.08 |
24.0-26.0 |
19.0-22.0 |
≤2.00 |
≤0.045 |
≤0.030 |
≤0.75 |
≤1.00 |
- - - |
- - - |
|
TP316 |
≤0.08 |
16.0-18.0 |
11.0-14.0 |
≤2.00 |
≤0.045 |
≤0.030 |
2.00-3.00 |
≤1.00 |
- - - |
- - - |
|
TP316L |
≤0.035 |
16.0-18.0 |
10.0-14.0 |
≤2.00 |
≤0.045 |
≤0.030 |
2.00-3.00 |
≤1.00 |
- - - |
- - - |
|
TP316N |
≤0.08 |
16.0-18.0 |
11.0-14.0 |
≤2.00 |
≤0.045 |
≤0.030 |
2.00-3.00 |
≤1.00 |
- - - |
0.10-0.16 |
|
TP317L |
≤0.035 |
18.0-20.0 |
11.0-15.0 |
≤2.00 |
≤0.045 |
≤0.030 |
3.0-4.0 |
≤1.00 |
- - - |
- - - |
|
TP321 |
≤0.08 |
17.0-19.0 |
9.0-12.0 |
≤2.00 |
≤0.045 |
≤0.030 |
- - - |
≤1.00 |
- - - |
≤0.10 |
|
TP321H |
0.04-0.10 |
17.0-19.0 |
9.0-12.0 |
≤2.00 |
≤0.045 |
≤0.030 |
- - - |
≤1.00 |
- - - |
- - - |
|
TP347 |
≤0.08 |
17.0-19.0 |
9.0-13.0 |
≤2.00 |
≤0.045 |
≤0.030 |
- - - |
≤1.00 |
- - - |
- - - |
