ASTM A268 TP409 Ferritic Stainless Steel Tube UNS S40900 / 1.4512 / SUS 409

ASTM A268 TP409 Ferritic Stainless Steel Tube UNS S40900 / 1.4512 / SUS 409
ASTM A268 TP409 Ferritic Stainless Steel Tube UNS S40900 / 1.4512 / SUS 409 ASTM A268 TP409 Ferritic Stainless Steel Tube UNS S40900 / 1.4512 / SUS 409 ASTM A268 TP409 Ferritic Stainless Steel Tube UNS S40900 / 1.4512 / SUS 409 ASTM A268 TP409 Ferritic Stainless Steel Tube UNS S40900 / 1.4512 / SUS 409

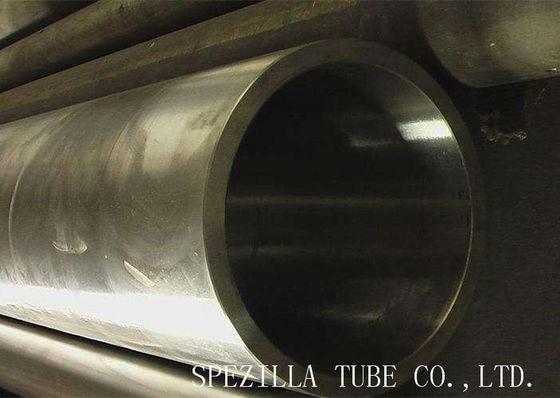

Large Image :  ASTM A268 TP409 Ferritic Stainless Steel Tube UNS S40900 / 1.4512 / SUS 409

Product Details:
Place of Origin: CHINA
Brand Name: SPEZILLA
Certification: ISO9001, TS16949, PED, AD2000
Model Number: SMLS
Payment & Shipping Terms:
Minimum Order Quantity: 500KGS
Price: NEGOCIATION
Packaging Details: WOODEN BOXED
Delivery Time: Ex-Mill 15 - 30DAYS
Payment Terms: T/T, L/C
Supply Ability: 100TONS/MONTH
Detailed Product Description
Material Grade: UNS S40900 / 1.4512 / SUS 409 Size Range: 3/4"
WT: BWG16 Length: 6096mm
Specification: ASTM A268, ASME SA268 Finishing Options: Pickling, Polishing, Custom Cutting
Test Certificate: EN10204 3.1 Packaging: Wooden Box, Bundled, Export Packaging Available
Application: Boiler,Heat Exchanger Shape: Round
Product Name: TP410 Ferritic Stainless Steel Tube
High Light:

seamless stainless steel tubing

,

rolled stainless steel tubing

ASTM A268 TP409 tube, UNS S40900 / 1.4512 / SUS 409 stainless steel tube





We are the manufacturer ,Supplier & Exporter of Stainless Steel ASTM A268 TP409 Seamless Stainless Tube,UNS S40900 Tube






Item Code:TP409/409L
Tube OD.:1/4'' - 2''
Wall:0.028'' - 0.120''
Length:20FT
Material:409/409L
Standard:ASTM A268 ASME SA268
Finish:Annealed & Pickled.
Type:Seamless Cold Drawn
Certification:ISO9001:2015
Mill Test Certificate:EN10204 3.1
Packing:

Sleeved, Wooden Boxed







Applications

409 is the perfect grade stainless steel to be used in automotive applications where visual appeal is not a top priority. For this reason and for its durability to gas corrosion, 409 is most commonly used in truck exhaust systems, agricultural equipment, and heat and gas turbine exhaust silencers.




Typical Manufacturing Specifications:

ASTM A268

ASME SA268


Chemical Formula
Fe, <0.08% C, 10.5-11.75% Cr, <0.5% Ni, <1.0% Mn, <1.0% Si, <0.045% P, <0.03% S, 6x%C-0.75% Ti

Quality Assurance:



409 / 409L Applications


Due to good resistance to high temperature corrosion and gas corrosion, good mechanical property and weldability, 409 / 409L is extensively used in automotive applications, truck exhaust systems, agricultural equipment, as well as heat and gas turbine exhaust silencers.

Grade 409 / 409L, Type 409 / 409L, Inox 409 / 409L, AISI 409 / 409L, SUH409 / 409L, 1.4512, UNS S40900, UNS S40903, Acero 409 / 409L.


Common Trade Names

409 Stainless, 409 Stainless Steel

Features

Although susceptible to rust formation, making this grade of stainless steel somewhat undesirable for decorative purposes, 409 is extremely resistant to various forms of gas corrosion.

Magnetic Properties: 409 flat rolled stainless steel is magnetic and cannot be hardened by heat treatment. It can, however, be somewhat hardened by cold-working. Type 409 has great ductility and is suitable for use in deep draw applications. It is also easily formable.

  • It is suggested prior to welding, the steel is pre-heated to 150-260C and also suggested post-weld annealing at 760-815C.


Spezilla's seamless bright annealed stainless steel tubes are produced acc. to the following process and inspection to assure our quality:
1. Chemical Composition Analysis Test With 100% PMI.
2. Solution Annealing / Bright Annealed.
3. 100% Hydrostatic Test and 100% Eddy Current Test
4. Mechanical Tests includes Tension Test, Flattening Test, Flaring Test, Hardness Test.
5. Impact Test subject to Standard request.
6. Grain Size Test and Intergranular Corrosion Test.
7. Visual Test and Endoscope Test for Surface Quality Test




Chemical Composition of ASTM A268 409 S40900 Grade and EN 10088-2 1.4512 1.4516 Stainless Steel


GradeCMnSiPSCrNiTi
TP409min. max.- 0.08- 1.00- 1.00- 0.045- 0.03010.5 11.7- 0.506×C-0.75
TP409Lmin. max.- 0.035- 1.00- 1.00- 0.045- 0.03010.5 11.7- 0.506×C-0.75
1.4516min. max.- 0.08- 1.50- 0.70- 0.040- 0.01510.5 12.50.50-1.500.05-0.35
1.4512min. max.- 0.030- 1.00- 1.00- 0.040- 0.01510.5 12.5- 0.506×(C+N)-0.65





Grade:TP405TP410TP249TP430TP443TP446-1TP446-2TP409
UNSS40500S41000S42900S43000S44300S44600S44600S40800S40900
C, max0.080.150.120.120.200.200.120.080.08
Mn,max1.001.001.001.001.001.501.501.001.00
P, max0.040.040.040.040.040.040.040.0450.045
S, max0.030.030.030.030.030.030.030.0450.045
Si, max1.001.001.001.001.001.001.001.001.00
Ni0.50max0.75max0.75max0.50max0.80max0.50max
Cr11.5-14.511.5-13.514.0-16.016.0-18.018.0-23.023.0-27.023.0-27.011.5-13.010.5-11.7
Mo
Al0.10-0.30
Cu0.90-1.25
N0.250.2512xCmin6xCmin
Ti1.10max0.75max



ASTM A268 TP409 Ferritic Stainless Steel Tube UNS S40900 / 1.4512 / SUS 409 0
