Product Details:
Payment & Shipping Terms:
|
| Application: | Medical,Industry | Material Grade: | AISI 304/304L |
|---|---|---|---|
| Outer Diameter: | 12mm | Wall Thickness: | 1.0mm |
| Length: | Cut Into Pcs | Process Method: | Welded,precision Rolled,cold Drawn |
| Standard: | ASTM/AISI ,GB,JIS,DIN,EN,etc | Surface Finish: | 180G, 320G, 400G Satin / Hairline,400G, 500G, 600G Or 800G Mirror Finish |
| Type: | High Precision Stainless Steel Tubing / Tube | Package: | Wooden Case |
| High Light: | stainless steel capillary tube,steel capillary tube |
||

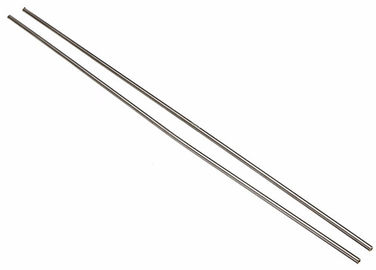

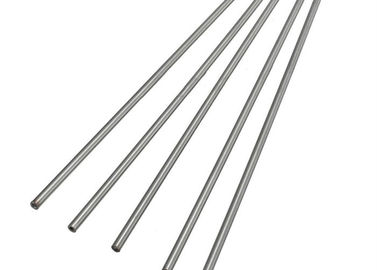

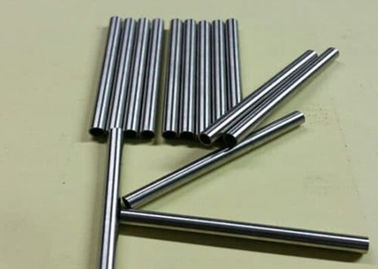

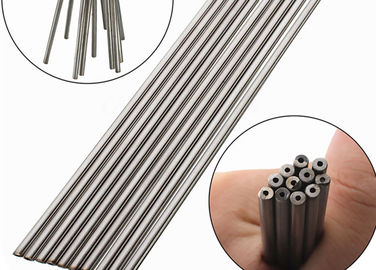

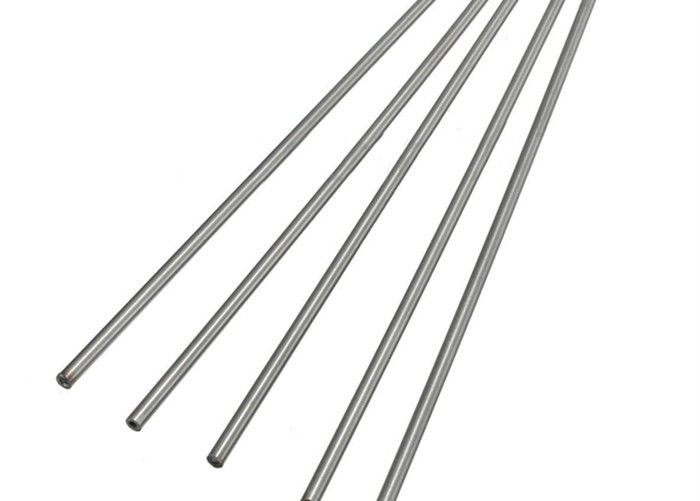

ASTM A269 Stainless Steel 304/304L Capillary Tubes 12x1.0x250mm
We manufacture special sizes of Stainless steel 304/304L capillary tubing’s also called as Stainless steel 304/304L surgical tubes which are critical and used in various Instrumentation, Medical and Heat treatment industry.
Capillary Tubes is a long, narrow tube of constant diameter. The word "capillary" is a misnomer since surface tension is not important in refrigeration application of capillary tubes.
Typical tube diameters of refrigerant capillary tubes range from 0.30 mm to 31.75 mm O.D. And 0.06 mm to 1.65 mm thickness and the length ranges from 1.0 mm to 6.0 mm. It & is widely used in instrumentation Industries.
TYPE:
SEAMLESS / ERW / WELDED/ SEMI-SEAMLESS / FABRICATED
Grade of stainless steel capillary pipes & tubes:
304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L.
Non-Ferrous Capillary pipes & tubes:
Inconel, Monel, Hastelloy, Copper, Brass, Nickel, Copper-nickel alloys, Copper alloys, nickel alloys, duplex stainless steel and other types of steels.
FORM:
ROUND, STRAIT, HYDRAULIC ETC.
LENGTH:
SINGLE RANDOM, DOUBLE RANDOM , COIL FORM, CUT LENGTH
END:
PLAIN END, BEVELED END.
Surface conditions for Stainless steel 304/304L capillary pipes and tubes:
Stainless Steel Capillary Tubes for medical needle applications and applicable fields:
Stainless Steel Capillary Tube Size Range:
Gauge |
Outside Diameter Tolerance mm | Regular Wall Thickness (RWT) mm | Thin Wall Thickness mm | Extra Thin Wall Thicknessmm | Ultra Thin Wall Thickness mm |
| 30 | 0.304 – 0.317 | 0.064 – 0.089 | |||
| 29 | o.330 – 0.342 | 0.064 – 0.089 | |||
| 28 | 0.355 – 0.368 | 0.076 – 0.102 | |||
| 27 | 0.406 – 0.419 | 0.089 – 0.115 | 0.064 – 0.089 | ||
| 26 | 0.457 – 0.469 | 0.089 – 0.114 | |||
| 25 | 0.508 – 0.520 | 0.115 – 0.140 | 0.089 – 0.114 | ||
| 24 | 0.558 – 0.571 | 0.114 – 0.140 | 0.089 – 0.114 | 0.051 – 0.102 | |
| 23 | 0.635 – 0.647 | 0.140 – 0.165 | 0.089 – 0.114 | 0.051 – 0.102 | |
| 22 | 0.711 – 0.723 | 0.140 – 0.165 | 0.096 – 0.121 | 0.077 – 0.102 | 0.051 – 0.102 |
| 21 | 0.812 – 0.825 | 0.140 – 0.165 | 0.102 – 0.127 | 0.051 – 0.102 | |
| 20 | 0.901 – 0.914 | 0.108 – 0.165 | 0.108 – 0.134 | ||
| 19 | 1.054 – 1.079 | 0.166 – 0.216 | 0.102 – 0.140 | 0.070 – 0.108 | |
| 18 | 1.257 – 1.282 | 0.191 – 0.241 | 0.127 – 0.165 | 0.083 – 0.121 | 0.051 – 0.102 |
| 17 | 1.460 – 1.485 | 0.177 – 0.229 | 0.115 – 0.152 | 0.083 – 0.127 | 0.057 – 0.102 |
| 16 | 1.638 – 1.663 | 0.204 – 0.254 | 0.127 – 0.165 | 0.096 – 0.133 | 0.070 – 0.121 |
| 15 | 1.816 – 1.841 | 0.204 – 0.254 | 0.127 – 0.165 | 0.096 – 0.134 | 0.070 – 0.121 |
| 14 | 2.082 – 2.133 | 0.216 – 0.292 | 0.165 – 0.229 | 0.114 – 0.165 | 0.076 – 0.134 |
| 13 | 2.387 – 2.438 | 0.267 – 0.343 | 0.191 – 0.267 | ||
| 12 | 2.743 – 2.749 | 0.267 – 0.321 | |||
| 11 | 3.023 – 3.073 | 0.293 – 0.368 | 0.216 – 0.292 | ||
| 10 | 3.378 – 3.429 | 0.318 – 0.394 | 0.216 – 0.292 |
Advantage:
• Advanced production and inspection equipment
• Top quality control system and service system
• Professional & Sincerity
• Competitive Price
• Good Reputation
• Timely Delivery
Applications Of Stainless Steel Capillary Tube
Capillary tubes are used in applications, such as:
Capillary Tubes Specification
Specifications : ASTM, ASME, AISI
Size : 1mm OD to 10mm OD
Thickness : 0.7 mm to 3.68 mm
Schedules : 5S, 10S, 20S, 40S, XS, 80S, 100S, 120S, 160S, XXS etc.
Length : Single Random, Double Random & Required Length
Form : Round Pipes/Tubes, Square Pipes/Tubes, Rectangular Pipe/Tubes, Coiled Tubes, “U” Shape, Pan Cake Coils, Hydraulic Tubes
End : Plain End, Beveled End, Treaded
Stainless Steel Capillary Pipes & Tubes are used in different applications of intra/extra cellular biology, separation sciences, hematology sampling and study, biotechnology, and biochemistry. Capillary Tube is a long, narrow tube of constant diameter.
| Type | Chemical Composition(%) | |||||||||
| ASTM | C | Cr | Ni | Mn | P | S | Mo | Si | Cu | N |
| TP304 | ≤0.08 | 18.0-20.0 | 8.0-11.0 | ≤2.00 | ≤0.045 | ≤0.030 | - - - | ≤1.00 | - - - | - - - |
| TP304L | ≤0.035 | 18.0-20.0 | 8.0-13.0 | ≤2.00 | ≤0.045 | ≤0.030 | - - - | ≤1.00 | - - - | - - - |
| TP304H | 0.04-0.10 | 18.0-20.0 | 8.0-11.0 | ≤2.00 | ≤0.045 | ≤0.030 | - - - | ≤1.00 | - - - | - - - |
| TP310S | ≤0.08 | 24.0-26.0 | 19.0-22.0 | ≤2.00 | ≤0.045 | ≤0.030 | ≤0.75 | ≤1.00 | - - - | - - - |
| TP316 | ≤0.08 | 16.0-18.0 | 11.0-14.0 | ≤2.00 | ≤0.045 | ≤0.030 | 2.00-3.00 | ≤1.00 | - - - | - - - |
| TP316L | ≤0.035 | 16.0-18.0 | 10.0-14.0 | ≤2.00 | ≤0.045 | ≤0.030 | 2.00-3.00 | ≤1.00 | - - - | - - - |
| TP316N | ≤0.08 | 16.0-18.0 | 11.0-14.0 | ≤2.00 | ≤0.045 | ≤0.030 | 2.00-3.00 | ≤1.00 | - - - | 0.10-0.16 |
| TP317L | ≤0.035 | 18.0-20.0 | 11.0-15.0 | ≤2.00 | ≤0.045 | ≤0.030 | 3.0-4.0 | ≤1.00 | - - - | - - - |
| TP321 | ≤0.08 | 17.0-19.0 | 9.0-12.0 | ≤2.00 | ≤0.045 | ≤0.030 | - - - | ≤1.00 | - - - | ≤0.10 |
| TP321H | 0.04-0.10 | 17.0-19.0 | 9.0-12.0 | ≤2.00 | ≤0.045 | ≤0.030 | - - - | ≤1.00 | - - - | - - - |
| TP347 | ≤0.08 | 17.0-19.0 | 9.0-13.0 | ≤2.00 | ≤0.045 | ≤0.030 | - - - | ≤1.00 | - - - |
- - - |
