Product Details:
Payment & Shipping Terms:
|
| Material Grade: | UNS S41000 /TP410 | Size Range: | 15.88mm 19.05mm 25.4mm |
|---|---|---|---|
| WT: | 1.65mm 2.11mm | Length: | 6096mm |
| Specification: | ASTM A268, ASME SA268 | Finishing Options: | Pickling, Polishing, Custom Cutting |
| Test Certificate: | EN10204 3.1 | Packaging: | Wooden Box, Bundled, Export Packaging Available |
| Application: | Boiler,Heat Exchanger | Shape: | Round |
| Product Name: | TP410 Ferritic Stainless Steel Tube | ||
| High Light: | rolled stainless steel tubing,high pressure stainless steel pipe |
||

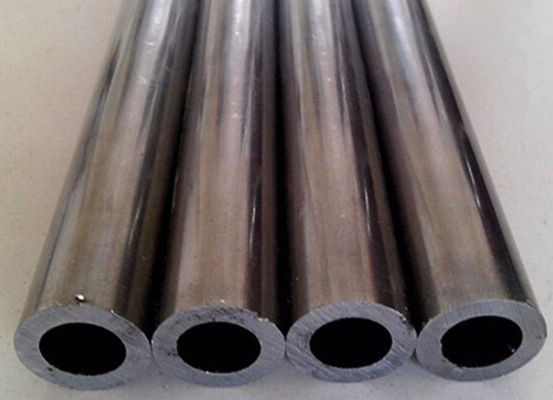

Cold Drawn TP410 Ferritic Stainless Steel Tube,ASTM A268 Ferritic Manufacture
TP410 is a typical martensitic chromium-alloy steel grade. It does not have the nickel content and owns the following characteristic:
- Harding by heat treatment
- High hardness with good ductility
- Good corrosion resistance capability
- Good wear corrosion resistance
- High cold-deformation property
Available Tube Product Forms:
Straight.
Coiled.
Typical Applications:
Used for parts requiring a combination of good strength and toughness, plus reasonable corrosion resistance. Typical applications are: Bolts, Bushings, Fasteners, Gas Turbine Parts, Mine Equipment, Pump Parts, Petrochemical Equipment, Steam Turbine Parts, Studs, Valve Parts etc.
Material magnetic in all conditions.
Typical Manufacturing Specifications:
ASTM A268
ASME SA268
Also individual customer specifications.
TP410 material does not have the nickel content and has a relative low material cost. Besides, it can replace some austenitic steel grades under some mild corrosion condition.
Ferritic Stainless Steel pipe ASTM A 268 TP410/TP410S
O.D.6-530mm W.T.0.5-40mm L max 24000mm
ASTM/ASME:A213/SA213 A249/SA249 A268 A312/SA312 A269 A270 A358 A376 A409 A511 A688 A789 A790 A803 A928 A544 A409 A632 A688 A778 A908
SB161 SB163 SB167 SB338 SB407 SB423 SB444 SB619 SB622 SB626 SB668 SB677 SB829
JIS:G3459 G3446 G3447 G3448 G3459 G3463 G3468
DIN:17455 17456 17457 17458 17459 2391 2462
EN:10216-5 10217-7
GOST9941 GOST9940
NFA NACE API ISO HAF
Quality Assurance:
Spezilla's seamless bright annealed stainless steel tubes are produced acc. to the following process and inspection to assure our quality:
1. Chemical Composition Analysis Test With 100% PMI.
2. Solution Annealing / Bright Annealed.
3. 100% Hydrostatic Test and 100% Eddy Current Test
4. Mechanical Tests includes Tension Test, Flattening Test, Flaring Test, Hardness Test.
5. Impact Test subject to Standard request.
6. Grain Size Test and Intergranular Corrosion Test.
7. Visual Test and Endoscope Test for Surface Quality Test
ASTM A268 Tp410 tube composition:
| Grade: | TP405 | TP410 | TP249 | TP430 | TP443 | TP446-1 | TP446-2 | … | TP409 |
| UNS | S40500 | S41000 | S42900 | S43000 | S44300 | S44600 | S44600 | S40800 | S40900 |
| C, max | 0.08 | 0.15 | 0.12 | 0.12 | 0.20 | 0.20 | 0.12 | 0.08 | 0.08 |
| Mn,max | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.50 | 1.50 | 1.00 | 1.00 |
| P, max | 0.04 | 0.04 | 0.04 | 0.04 | 0.04 | 0.04 | 0.04 | 0.045 | 0.045 |
| S, max | 0.03 | 0.03 | 0.03 | 0.03 | 0.03 | 0.03 | 0.03 | 0.045 | 0.045 |
| Si, max | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 | 1.00 |
| Ni | 0.50max | … | … | … | 0.75max | 0.75max | 0.50max | 0.80max | 0.50max |
| Cr | 11.5-14.5 | 11.5-13.5 | 14.0-16.0 | 16.0-18.0 | 18.0-23.0 | 23.0-27.0 | 23.0-27.0 | 11.5-13.0 | 10.5-11.7 |
| Mo | … | … | … | … | … | … | … | … | … |
| Al | 0.10-0.30 | … | … | … | … | … | … | … | … |
| Cu | … | … | … | … | 0.90-1.25 | … | … | … | … |
| N | … | … | … | … | … | 0.25 | 0.25 | 12xCmin | 6xCmin |
| Ti | … | … | … | … | … | … | … | 1.10max | 0.75max |
Description:
| Item Code: | TP410 |
| Tube OD.: | 1/4'' - 2'' |
| Wall: | 0.028'' - 0.120'' |
| Length: | 20FT |
| Material: | 410 |
| Standard: | ASTM A268 ASME SA268 |
| Finish: | Annealed & Pickled. |
| Type: | Seamless Cold Drawn |
| Certification: | ISO9001:2015 |
| Mill Test Certificate: | EN10204 3.1 |
| Packing: | Sleeved, Wooden Boxed |
| Chemical Composition | |||||||||||
| Min. % | Max % | ||||||||||
| Carbon | 0.09 | 0.15 | |||||||||
| Silicon | 0 | 1.00 | |||||||||
| Manganese | 0 | 1.00 | |||||||||
| *Nickel | 0 | 1.00 | |||||||||
| Chromium | 11.50 | 13.50 | |||||||||
| Phosphorous | 0 | 0.04 | |||||||||
| Sulphur | 0 | 0.03 | |||||||||
| *Nickel additional option | |||||||||||
| Typical Mechanical Properties At Room Temperature - Hardened By Oil Quench at 1010oC and Tempered as Indicated | |||||||||||
| Temperature oC | 250 | 370 | 480 | 540 | 590 | 650 | |||||
| Tensile Strengt Mpa | 1350 | 1295 | 1300 | 690 | 830 | 730 | |||||
| 0.2% Yield Strength Mpa | 1095 | 1070 | 1020 | 915 | 725 | 630 | |||||
| Elongation in 50mm % | 17 | 17 | 18 | 19 | 20 | 21 | |||||
| Impact Charpy J | 76 | 66 | *38 | *33 | 52 | 95 | |||||
| Hardness | HB | 400 | 400 | 400 | 285 | 248 | 223 | ||||
| Rc | 43 | 43 | 43 | 30 | 24 | 20 | |||||
