Product Details:
Payment & Shipping Terms:
|
Application: | Instrumental | Material Grade: | SUS 304 316L |
---|---|---|---|
Outer Diameter: | 6mm-10mm | Wall Thickness: | 0.3mm-8mm |
Length: | Cut Into Pcs | Process Method: | Welded,precision Rolled,cold Drawn |
Standard: | ASTM/AISI ,GB,JIS,DIN,EN,etc | Surface Finish: | 180G, 320G, 400G Satin / Hairline,400G, 500G, 600G Or 800G Mirror Finish |
Type: | High Precision Stainless Steel Tubing / Tube | Package: | Wooden Case |
High Light: | steel capillary tube,metal capillary tube |

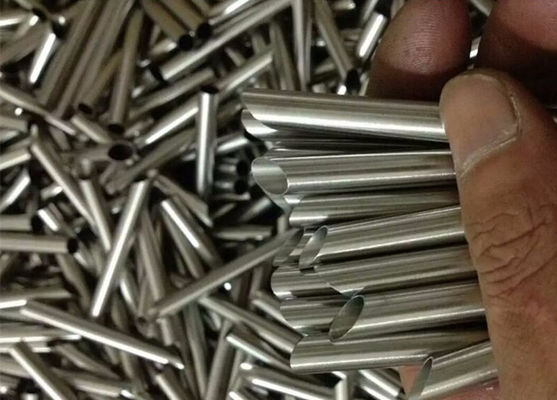

304 316L Stainless Steel SS Capillary Tubing 9x0.889mm Cold Drawn Annealed
Capillary tubes with a maximum bore of 0.0158 in., available in a wide range of stainless steels. Sandvik capillary tubes are characterized by tight tolerances, and the inside surface of the tubes is free from oil, grease and other particles. This ensures, for example, an optimized and even flow of liquids and gases from the sensor to the measuring instrument.
Quick Detail:
Manufacturing to: ASTM A269, DIN 17458/EN10216-5 TC1, D3/T3, D4/T3 NACE MR.01.75/77, Cert To EN 10204 3.1
T est: 100% Eddy Test or Hydrostatic Test, UT Test
Delivery Condition: Annealed & Pickled, Annealed & Pickled + Polished
Capillary tubes are used in applications, such as:
RANGE of Stainless Steel Capillary pipes and tubes:
0.35mm to 6.35mm OD in thickness ranging from 0.1mm to 1.2mm.
TYPE:
SEAMLESS / ERW / WELDED/ SEMI-SEAMLESS / FABRICATED
Grade of stainless steel capillary pipes & tubes:
304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L.
Non-Ferrous Capillary pipes & tubes:
Inconel, Monel, Hastelloy, Copper, Brass, Nickel, Copper-nickel alloys, Copper alloys, nickel alloys, duplex stainless steel and other types of steels.
FORM:
ROUND, STRAIT, HYDRAULIC ETC.
LENGTH:
SINGLE RANDOM, DOUBLE RANDOM , COIL FORM, CUT LENGTH
END:
PLAIN END, BEVELED END.
The Stainless Steel Capillary Tubes are used while supplying liquids and gases from sensors to measuring instruments. The tubes are used in various critical applications with having an inner surface free from oil, grease and dust particles. These tubes are available in different sizes, tolerances and thickness as per the requirements of our clients.
Capillary Pipes Tubes &OCTG, CRA (Corrosion-Resistant Alloy) Seamless Tubes,Stainless Steel , Super Duplex , Duplex , Welded & Seamless, Carbon Steel Seamless Pipes, Tubes, Capillary Pipes & ‘U’ Tubes for applications in oil & gas, LNG, Thermal & Nuclear Power Plants, Chemical Industries, Fertilizers Plants, (petro) chemical, shipbuilding, desalination, water treatment, energy industries, EPC and Pipes for General Engineering Purpose.
Stainless Steel Capillary Tube Size Range:
Gauge |
Outside Diameter Tolerance mm | Regular Wall Thickness (RWT) mm | Thin Wall Thickness mm | Extra Thin Wall Thicknessmm | Ultra Thin Wall Thickness mm |
30 | 0.304 – 0.317 | 0.064 – 0.089 | |||
29 | o.330 – 0.342 | 0.064 – 0.089 | |||
28 | 0.355 – 0.368 | 0.076 – 0.102 | |||
27 | 0.406 – 0.419 | 0.089 – 0.115 | 0.064 – 0.089 | ||
26 | 0.457 – 0.469 | 0.089 – 0.114 | |||
25 | 0.508 – 0.520 | 0.115 – 0.140 | 0.089 – 0.114 | ||
24 | 0.558 – 0.571 | 0.114 – 0.140 | 0.089 – 0.114 | 0.051 – 0.102 | |
23 | 0.635 – 0.647 | 0.140 – 0.165 | 0.089 – 0.114 | 0.051 – 0.102 | |
22 | 0.711 – 0.723 | 0.140 – 0.165 | 0.096 – 0.121 | 0.077 – 0.102 | 0.051 – 0.102 |
21 | 0.812 – 0.825 | 0.140 – 0.165 | 0.102 – 0.127 | 0.051 – 0.102 | |
20 | 0.901 – 0.914 | 0.108 – 0.165 | 0.108 – 0.134 | ||
19 | 1.054 – 1.079 | 0.166 – 0.216 | 0.102 – 0.140 | 0.070 – 0.108 | |
18 | 1.257 – 1.282 | 0.191 – 0.241 | 0.127 – 0.165 | 0.083 – 0.121 | 0.051 – 0.102 |
17 | 1.460 – 1.485 | 0.177 – 0.229 | 0.115 – 0.152 | 0.083 – 0.127 | 0.057 – 0.102 |
16 | 1.638 – 1.663 | 0.204 – 0.254 | 0.127 – 0.165 | 0.096 – 0.133 | 0.070 – 0.121 |
15 | 1.816 – 1.841 | 0.204 – 0.254 | 0.127 – 0.165 | 0.096 – 0.134 | 0.070 – 0.121 |
14 | 2.082 – 2.133 | 0.216 – 0.292 | 0.165 – 0.229 | 0.114 – 0.165 | 0.076 – 0.134 |
13 | 2.387 – 2.438 | 0.267 – 0.343 | 0.191 – 0.267 | ||
12 | 2.743 – 2.749 | 0.267 – 0.321 | |||
11 | 3.023 – 3.073 | 0.293 – 0.368 | 0.216 – 0.292 | ||
10 | 3.378 – 3.429 | 0.318 – 0.394 | 0.216 – 0.292 |
Stainless Steel Capillary Tubes for medical needle applications and applicable fields:
Advantage:
• Advanced production and inspection equipment
• Top quality control system and service system
• Professional & Sincerity
• Competitive Price
• Good Reputation
• Timely Delivery
1. Products Specification
Stainless Steel capillary tubes for medical needle Grade | Straight/ Coil tubing TP 304, TP 304L, TP 316/316L, TP321, TP316SS TP310S/ Incoloy800/825/600/625/718 Monel400/ K-50 etc. |
Stainless Steel capillary tubes for medical needle Standard | Straight/ Coil tubing ASTM, GB, AISI, JIS, DIN,EU |
Stainless Steel capillary tubes for medical needle Diameter | Straight/ Coil tubing 0.33mm-76mm |
Stainless Steel capillary tubes for medical needle Thickness | Straight/ Coil tubing 0.1mm-3.0mm |
Stainless Steel capillary tubes for medical needle Length | Straight/ Coil tubing Depending on your requirement 50-2000meters |
Stainless Steel capillary tubes for medical needle Technique | Straight/ Coil tubing Cold drawing, precision rolling |
