Product Details:
Payment & Shipping Terms:
|
| Materials: | Duplex Steel UNS S32205/S31803 | Product Name: | Duplex Stainless Steel Tube |
|---|---|---|---|
| Standard: | ASME SA789/ ASTM A789 | O.D.: | 5/8"-2" |
| W.T.: | BWG18-BWG14 | Length MAX: | 12000MM Max. |
| Pipe Finish: | TIG Welded | Type: | Welded |
| Shape: | Round | Surface: | Annealed&Pickled |
| Application: | Heat Exchanger | Package: | Wooden Case |
| High Light: | super duplex pipe,duplex ss pipe |
||

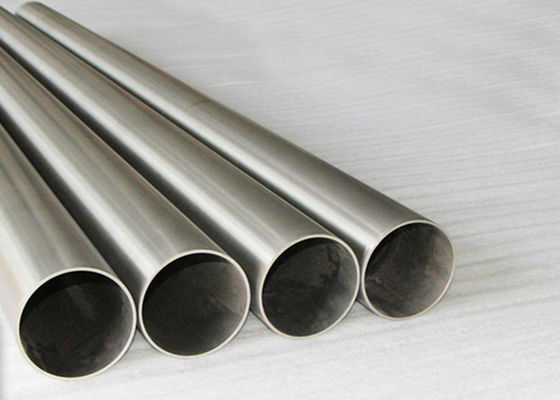

Round duplex stainless steel 2205 Hyper Max Length 12000MM Annealed / Pickled Surface
UNS S31803, F51, 1.4462 duplex stainless steel is designed to combine improved resistance to stress corrosion cracking, pitting, crevice corrosion and high strength when compared with other stainless alloys
Duplex UNS S31803, F51, 1.4462 duplex alloy resists chloride environments and sulphide stress corrosion
Duplex UNS S31803, F51, 1.4462 is also roughly double the strength of standard austenitic stainless steels
These attributes mean that Duplex UNS S31803, F51, 1.4462 can be used successfully as an alternative to standard stainless steel specifications in applications where higher strength and resistance to stress corrosion cracking is required
2205/UNS S31803 is a duplex (austenitic-ferritic) stainless steel containing about 40 - 50% ferrite in the annealed condition. 2205 has been a practical solution to chloride stress corrosion cracking problems experienced with 304/304L or 316/316L stainless. The high chromium, molybdenum and nitrogen contents provide corrosion resistance superior to 316/316L and 317L stainless in most environments. 2205 is not suggested for operating temperatures above 600°F.
The design strength of 2205 is significantly higher than 316/316L, often permitting lighter wall construction. 2205 has good notch impact toughness down to temperatures below - 40°F.
Specifications of Duplex Stainless Steel Welded Tube
1. Standard: ASTM ASME
2. Grade: 630 / 631 / 2205 / 2507 / 17-4PH
ASTM A789, ASTM A790, ASTM A450, ASTM A530,
GB/T 14976, GB/T 14975, GB/T 13296, etc
3. OD: 8mm-1000mm
4. Wall thickness: 0.3mm-30mm
5. Length: max.18000mm or as demand
6. Surface finish: Polishing (180#,220#,240#,320#400#,600#), Hairline, acid pickled, etc.
Features
Duplex 2205 is a nitrogen enhanced duplex stainless steel that was developed to combat common corrosion problems encountered with the 300 series stainless steels. “Duplex” describes a family of stainless steels that are neither fully austenitic, like 304 stainless, nor purely ferritic, like 430 stainless. The structure of 2205 duplex stainless steel consists of austenite pools surrounded by a continuous ferrite phase. In the annealed condition, 2205 contains approximately 40-50% ferrite. Often referred to as the work horse grade, 2205 is the most widely used grade in the duplex family of stainless steels.
The advantage of a duplex structure is that it combines the favorable qualities of a ferritic alloy (stress corrosion cracking resistance and high strength) with those of an austenitic alloy (ease of fabrication and corrosion resistance).
Usage of 2205 Duplex stainless steel should be limited to temperatures below 600° F. Extended elevated temperature exposure can embrittle 2205 stainless.
Corrosion Resistance.
| Specifications (ASTM/ASME) Duplex Stainless Steel Pipe | ||||
| Alloy | UNS Designation | Material Specification |
Tubing Specification |
Pipe Specification |
| 2205 | S31803/S32205 | A 240/SA-240 | A 270 | A 790/SA-790 |
| A 789/SA-789 | A928/SA928 | |||
Chemical Compositions:
| Chemical Composition (%) Duplex Stainless Steel Pipe | ||
| Alloy | 2205 | 2205 |
| UNS Designation | S31803 | S32205 |
| Carbon (C) max. | 0.030 | 0.030 |
| Manganese (Mn) max. | 2.00 | 2.00 |
| Phosphorus (P) max. | 0.030 | 0.030 |
| Sulfur (S) max. | 0.020 | 0.020 |
| Silicon (Si) max. | 1.00 | 1.00 |
| Chromium (Cr) | 21.0 - 23.0 | 22.0 - 23.0 |
| Nickel (Ni) | 4.5 - 6.5 | 4.5 - 6.5 |
| Molybdenum (Mo) | 2.5 - 3.5 | 3.0 - 3.5 |
| Nitrogen (N) | 0.08 - 0.20 | 0.14 - 0.20 |
| Iron (Fe) | Balance | Balance |
| Chemical Element | % Present |
|---|---|
| Carbon (C) | 0.0 – 0.03 |
| Chromium (Cr) | 21.00 – 23.00 |
| Manganese (Mn) | 2.00 max |
| Silicon (Si) | 1.00 max |
| Phosphorous (P) | 0.0 – 0.03 |
| Sulphur (S) | 0.0 – 0.02 |
| Nickel (Ni) | 4.50 – 6.50 |
| Nitrogen (N) | 0.08 – 0.20 |
| Molybdenum (Mo) | 2.50 – 3.50 |
| Iron (Fe) | Balance |
| Physical Property | Value |
|---|---|
| Density | 7.805 g/cm³ |
| Thermal Expansion | 13.7 x10^-6 /K |
| Modulus of Elasticity | 200 GPa |
| Thermal Conductivity | 19.0 W/m.K |
| Electrical Resistivity | 0.085 x10^-6 Ω .m |
| Mechanical Property | Value |
|---|---|
| Proof Stress | 450 Min MPa |
| Tensile Strength | 620 Min MPa |
| Elongation A50 mm | 25 Min % |
| Hardness Brinell | 290 Max HB |
