Type: | High Precision Stainless Steel Tubing / Tube | Application: | Petrochemical Industry |
---|---|---|---|
Material Grade: | TP321/TP321H,SUS304/304l | Outer Diameter: | 25.4mm |
Process Method: | Cold Rolled,precision Rolled,cold Drawn | Standard: | ASTM/AISI ,GB,JIS,DIN,EN,etc |
Surface Finish: | 180G, 320G, 400G Satin / Hairline,400G, 500G, 600G Or 800G Mirror Finish | Wall Thickness: | 0.3mm-8mm |
High Light: | precision steel pipe,round steel tubing |

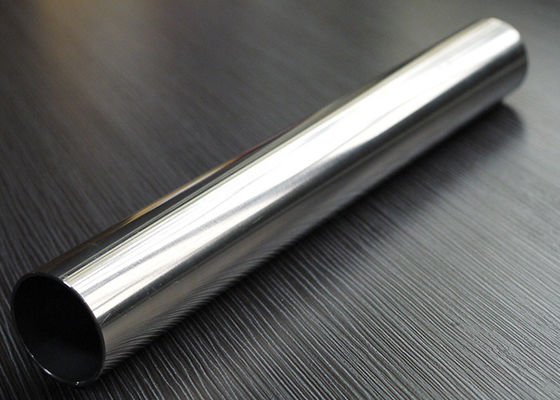

2 inch round steel tubing Seamless Precision Stainless Steel Tubing For Instrumentation Cold Rolled
304 Stainless Steel Is the most versatile and widely used of stainless steel grades, due to its combination of corrosion resistance, formability, and ductility. Seamless tubing features heavier wall thicknesses for mechanical applications. It is ideal for food and beverage, pharmaceutical, and chemical and petrochemical processing applications.
316 Stainless Steel provides the best resistance to pitting and corrosion of any of the austenitic (300 series) stainless steels. It is extremely ductile, with excellent strength at elevated temperatures. Seamless tubing can be produced with heavier wall thicknesses for mechanical applications. It is ideal for hydraulic and instrumentation tubing in chemical, textile, and pulp and paper industries, and in marine environments.
321 Stainless Steel Seamless Tubing offers outstanding corrosion resistance in extreme temperatures, as well as excellent welding and forming characteristics. It is ideal for hydraulic and pneumatic systems, and other applications with exposure to extreme temperatures.
Quick Detail:
Manufacturing to: ASTM A269, DIN 17458/EN10216-5 TC1 (D4/T3) NACE MR.01.75/77, Cert. To EN 10204 3.1
Test: 100% Eddy Test & Hydrostatic Test
Delivery Condition: Annealed & Pickled, Annealed & Pickled + Polished, Bright Annealed
Outside Diameter: 3.18mm-50.8mm, Wall Thickness: 0.71mm-3.05mm
1. Products Specification
Commodity |
precision rolled stainless steel precision pipe tube |
Standard |
ASTM/AISI ,GB,JIS,DIN,EN,etc |
Material Grade |
TP304/304L, TP321/TP321H |
SUS304/304l, SUS316/316L, 304lL, 316L, 321, 316Ti,etc |
|
Outer Diameter |
6mm or as your request |
Thickness |
1mm or as your request |
Length |
<8m or as customers' request |
Tolerance |
According to the Standard |
Surface |
180G, 320G, 400G Satin / Hairline |
400G, 500G, 600G or 800G Mirror finish |
|
Application |
Petrochemical industry, chemical fertilizer industry, oil refining industry, oil and gas industry, light industry and food industry, pulp and paper industry, energy and environmental industries. |
Test |
UT,ET,HT RT, squash test, water pressure test, etc and others according to the standard |
Package |
Standard sea-worthy package or as buyers' requirement |
MOQ |
2 Metric Ton |
Price term |
FOB Shanghai or Ningbo |
2. Chemical Element Analysis
Type |
Chemical Composition(%) |
|||||||||
ASTM |
C |
Cr |
Ni |
Mn |
P |
S |
Mo |
Si |
Cu |
N |
TP304 |
≤0.08 |
18.0-20.0 |
8.0-11.0 |
≤2.00 |
≤0.045 |
≤0.030 |
- - - |
≤1.00 |
- - - |
- - - |
TP304L |
≤0.035 |
18.0-20.0 |
8.0-13.0 |
≤2.00 |
≤0.045 |
≤0.030 |
- - - |
≤1.00 |
- - - |
- - - |
TP304H |
0.04-0.10 |
18.0-20.0 |
8.0-11.0 |
≤2.00 |
≤0.045 |
≤0.030 |
- - - |
≤1.00 |
- - - |
- - - |
TP310S |
≤0.08 |
24.0-26.0 |
19.0-22.0 |
≤2.00 |
≤0.045 |
≤0.030 |
≤0.75 |
≤1.00 |
- - - |
- - - |
TP316 |
≤0.08 |
16.0-18.0 |
11.0-14.0 |
≤2.00 |
≤0.045 |
≤0.030 |
2.00-3.00 |
≤1.00 |
- - - |
- - - |
TP316L |
≤0.035 |
16.0-18.0 |
10.0-14.0 |
≤2.00 |
≤0.045 |
≤0.030 |
2.00-3.00 |
≤1.00 |
- - - |
- - - |
TP316N |
≤0.08 |
16.0-18.0 |
11.0-14.0 |
≤2.00 |
≤0.045 |
≤0.030 |
2.00-3.00 |
≤1.00 |
- - - |
0.10-0.16 |
TP317L |
≤0.035 |
18.0-20.0 |
11.0-15.0 |
≤2.00 |
≤0.045 |
≤0.030 |
3.0-4.0 |
≤1.00 |
- - - |
- - - |
TP321 |
≤0.08 |
17.0-19.0 |
9.0-12.0 |
≤2.00 |
≤0.045 |
≤0.030 |
- - - |
≤1.00 |
- - - |
≤0.10 |
TP321H |
0.04-0.10 |
17.0-19.0 |
9.0-12.0 |
≤2.00 |
≤0.045 |
≤0.030 |
- - - |
≤1.00 |
- - - |
- - - |
TP347 |
≤0.08 |
17.0-19.0 |
9.0-13.0 |
≤2.00 |
≤0.045 |
≤0.030 |
- - - |
≤1.00 |
- - - |
- - - |
