| Product Name: | Sanitary Stainless Steel Tube | Standard: | ASTM A270 |
|---|---|---|---|
| Materials: | AISI TP316L,304L | O.D.: | 3/4"-6" |
| W.T.: | 1.65mm,2mm,1.5mm,1.2mm | Length: | 20ft |
| Pipe Finish: | Polished | Shape: | Round |
| Package: | Wooden Case | Application: | Food |
| High Light: | annealed stainless steel tubing,sanitary stainless steel tubing |
||

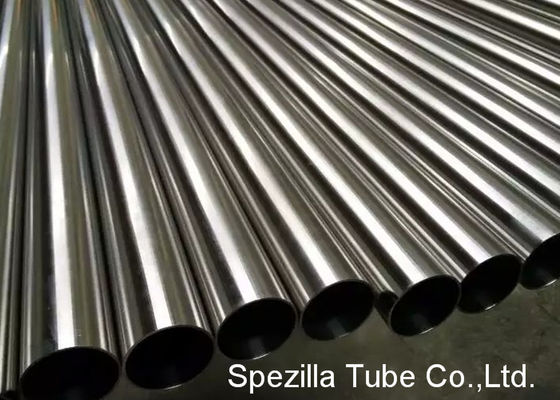

A270 T304 10mm stainless steel tube,Stainless Steel Welded Tube Corrosion Resistance
Spezilla sanitary tube is ideal for the dairy food and beverage industries where the highest degree purity and cleanliness is essential. It is certified to the requirements of ASTM A270 standards, and most user specifications.
Available Sizes:
OD from 1/2'' to 8'' (12.7MM to 203.20MM)
Wall thickness: 0.065'' to 0.083'' (1.65MM to 2.11MM)
Length: 20ft ( 6100MM)
Our customers have come to rely on the quality of Spezilla’s sanitary tube products as well as our uncompromised commitment to total customer satisfaction. We stock all sanitary tube sizes from ½” to 6.0” OD in 20 ft. standard lengths. Custom lengths and sizes are available upon request. We stock:
Surface Polish:
Surface finish is 20 u-in Ra (0.5um) ID maximum, 30 u-in Ra (0.8um) OD maximum surface roughness measured per ASME/ANSI B46.1 with the profilo-meter reading at 90 degree to the lay. Other finishes available upon request.
Quality Control:
To assure the highest quality standards, our stainless steel sanitary pipe is subjected to extensive testing and inspection programs that meet or exceed ASTM A270/A1016/A1016M test requirements. Testing includes reverse bend, reverse flattening, and flange tests. Eddy current testing is performed on 100% of the stainless steel sanitary pipe produced.
1. Heat Exchangers, Condensers & Pressure Vessels
2. Chemical & Petrochemical
3. Gas Industry
4. Power Generation
5. Pressure Vessels
6. Marine Equipments
7. Food & Beverage Processing
8. Automotive
9. Pulp & Paper
Size Range
Outside Diameter: 1/2" – 8"
Wall Thickness: .065" and .083"
Governing Production Specifications - ASTM A270/A269/A249
| Outside Diameter (O.D.) | Dimensional Tolerances | |
| Over | Under | |
| 1.000" and Smaller | 0.005" | 0.005" |
| Over 1" to 2" | 0.008" | 0.008" |
| Over 2" to 3" | 0.010" | 0.010" |
| Over 4" to < 5½", excl | 0.015" | 0.015" |
| 5½" to 8", excl | 0.030" | 0.030" |
| 8" to 12" | 0.050" |
0.050" |
| Grades | TP 304 | TP 304L | TP 316 | TP 316L |
| C max | 0.07 | 0.03 | 0.08 | 0.03 |
| Mn max | 2.00 | 2.00 | 2.00 | 2.00 |
| P max | 0.045 | 0.045 | 0.045 | 0.045 |
| S max | 0.03 | 0.03 | 0.03 | 0.03 |
| Si max | 0.75 | 0.75 | 0.75 | 0.75 |
| Cr | 17.5 -- 19.5 | 17.5 -- 19.5 | 16 -- 18 | 16 -- 18 |
| Ni | 8 -- 10.5 | 8 -- 12 | 10 -- 14 | 10 -- 14 |
| N max | 0.10 | 0.10 | 0.10 | 0.10 |
| Mo | -- | -- | 2.00-3.00 | 2.00-3.00 |
