| Product Name: | Stainless Steel Tube | Tech Standard: | EN10357, DIN 11850 |
|---|---|---|---|
| Tube Surface: | POLISHED 240GRIT | Certificate: | ISO9001:2008 |
| Type: | WELDED | OD: | 13.00MM - 204.00MM |
| Grade: | 1.4301, 1.4307, 1.4404 | Shape: | Round |
| Package: | Wooden Case | Application: | Food |
| High Light: | round mechanical tubing,stainless steel round tube |
||

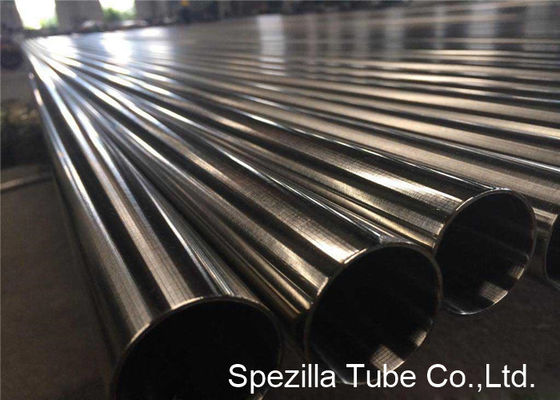

DIN EN10357 Bright Annealed Stainless steel hydraulic tubing DN10 - DN200 For Dairy
Description:
Spezilla manufactures stainless steel sairy tubes acc. to EN10357 & DIN 11850 standards, High surface quality guarantees the required hygienic safety. The in-house surface treatment department provides the optimal finish according to your requirements.
1. Internal surface Ra<0.8μm, internal weld bead Ra<1.6μm.
2. Bead rolled Dairy Tube for hygienic applica ons
3. Manufactured to EN10357 hygienic standard
4. Available in grades 304 and 316L
5. Dull Polished external 180—220 grit
6. Available in sizes from 1/2” - 4” OD
7. 1.5mm Thick from 1/2” - 3”, 2mm thick for 4”
8. Supplied un-annealed for maximum value
9. Available with 3.1 mill cer cates
10.Supplied in accordance with our ISO quality system
| Material | 304 (1.4301) or 304L (1.4307) 316L (1.4404) others on request |
| Dimensions DIN | DN10 - DN200 Series A and series B |
| Dimensions ISO | DN10 - DN200 Series C |
| Dimensions SMS and OD |
1" - 4" Series D |
| Inner surface | Outer surface | |
| CC |
pickled W2(b) and passivated Ra < 0.8 µm area of weld seam Ra < 1.6 µm |
pickled W2(b) and passivated |
| CD |
pickled W2(b) and passivated Ra < 0.8 µm area of weld seam Ra < 1.6 µm |
ground Ra < 1.0 µm |
| BC |
annealed and pickled, or bright annealed, W2R(b), l1g or l2g Ra < 0.8 µm area of weld seam Ra < 1.6 µm |
pickled and passivated or bright annealed W2A(b), W2R(b), l1g or l2g |
| BD |
annealed and pickled, or bright annealed, W2R(b), l1g or l2g Ra < 0.8 µm area of weld seam Ra < 1.6 µm |
ground Ra < 1.0 µm |
Stainless Steel Dairy Tube Dimension:
| ND | Series A | Series B | DIN 11850 Raw 1 - mod. |
| Dim. | Dim. | Dim. | |
| 10 | 13.00x1.50 | 12.00x1.00 | 12.00x1.50 |
| 15 | 19.00x1.50 | 18.00x1.00 | 18.00x1.50 |
| 20 | 23.00x1.50 | 22.00x1.00 | 22.00x1.50 |
| 25 | 29.00x1.50 | 28.00x1.00 | 28.00x1.50 |
| 32 | 35.00x1.50 | 34.00x1.00 | 34.00x1.50 |
| 40 | 41.00x1.50 | 40.00x1.00 | 40.00x1.50 |
| 50 | 53.00x1.50 | 52.00x1.00 | 52.00x1.50 |
| 65 | 70.00x2.00 | - | - |
| 80 | 85.00x2.00 | - | - |
| 100 | 104.00x2.00 | - | - |
| 125 | 129.00x2.00 | - | - |
| 150 | 154.00x2.00 | - | - |
Quality Assurance:
We provide a 3.1 certificate acc. EN 10204 for each pipe. 3.1 AD2000-W2 on request.
