Product Details:
Payment & Shipping Terms:
|
| Material Grade: | 304/304L | Size Range: | 1.5'' X 0.065'' X 20FT |
|---|---|---|---|
| Specification: | 3A ASTM A270 | Finishing Options: | ID/OD Polished 320G/180G |
| Test Certificate: | EN10204 3.1 | Packaging: | Wooden Boxed, End Capped |
| Product Name: | Sanitary Stainless Steel Tubing | Quality: | EN10204 3.1 |
| High Light: | sanitary stainless pipe,stainless steel sanitary pipe |
||

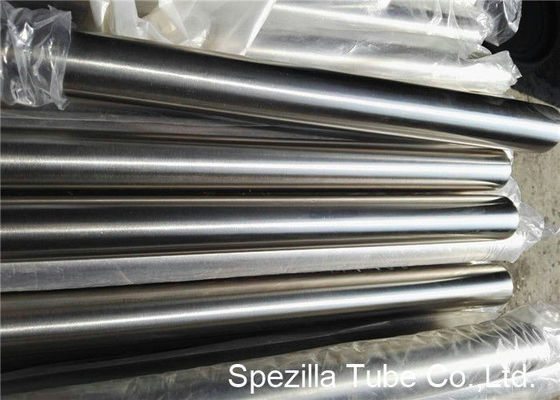

3A Certified Stainless Steel Sanitary Tubing ASTM A269 A270 304/304L 1.5'' X 0.065'' X 20FT Mechanical Polished 0.5um.
SPEZILLA is leading manufacturer & suppliers of stainless steel seamless and welded tubing manufactured as per ASTM A270 standards in grades SS304L, 904L, 321, SS316L with bright annealed finish, electropolished finish or mechanical polish & all stainless steel pipes, with strategic inventories for quick call-outs. With our extensive knowledge, we can support your company from maintenance to construction of new projects. We stock and distribute a large and diverse inventory of ASTM A270 stainless steel sanitary tubing, austenitic grades of stainless steel including 304, 304L, 316, 316L, in annealed and pickled, 2B finish, bright annealed, mill finish and polished conditions, and nickel alloy steel pipe from industry-leading and widely accepted manufacturers who meet or exceed the stringent technical requirements.
Spezilla sanitary tube is ideal for the dairy food and beverage industries where the highest degree purity and cleanliness is essential. It is certified to the requirements of ASTM A270 standards, and most user specifications.
Our customers have come to rely on the quality of Spezilla’s sanitary tube products as well as our uncompromised commitment to total customer satisfaction. We stock all sanitary tube sizes from ½” to 6.0” OD in 20 ft. standard lengths. Custom lengths and sizes are available upon request. We stock:
Type T304L adaptable for brazing or field welding
Type T316L corrosion and heat resistant, adaptable for welding, brazing
Tube Standard Specifications:
We supply a variety stainless steel sanitary tubing products conforming to ASTM A270. View the standard specifications chart.
Size / Dimensions:
1/4" through 4"
20 ft. Lengths
(Coil Lengths Available - Non Stock)
ASTM A270 Sanitary stainless steel tubing as well sanitary stainless steel tube, meets A270 standards available in sanitary stainless steel AISI 316L, 304L or 304 from 1” to 4” sizes, inside roughness ( 32 μ'/0,8 μm ) Ra 180 grit; outside surface finishing ( 150 grit / Brushed ) acording A270. Upon Request Inside surface finishing ( 20 μ'/0,5 μm ) Ra. for ASME SA270 standards. To maintain clean standards tubes are packed individually in plastic sleeves and covered with plastic caps in both ends.
Surface Finish
Bright annealed and mechanically polished.
Maximum roughness measurement of 32 Ra O.D. and 20 Ra I.D.
Packaging
All sanitary tubes are shipped end capped and poly sleeved for exceptional protection.
Mechanical Tests
Our sanitary tubing undergoes a wide variety mechanical and non-destructive testing that meet or exceed ASTM A270/A269/A1016.
Description:
| Item Code: | SPW-S-304/304L |
| Tube OD.: | 25.40MM - 101.60MM |
| Wall: | 1.65MM - 2.11MM |
| Length: | 6096MM. 20FT |
| Material: | 304/304L |
| Standard: | ASTM A270 |
| Finish: | Bright Annealed & ID/OD Polished. |
| Type: | Welded & Polished |
| Certification: | ISO9001:2015 |
| Mill Test Certificate: | EN10204 3.1 |
| Packing: | Wooden Boxed |
Chemical composition reference analysis (as weight %)
| Chemical | Amount % | |
|---|---|---|
| 304 | 304L | |
| C | ≤ 0,08 | ≤ 0,035 |
| P | < 0,040 | < 0,040 |
| S | ≤ 0,030 | ≤ 0,030 |
| Si | ≤ 1,0 | ≤ 1,0 |
| Mn | ≤ 2,0 | ≤ 2,0 |
| Cr | 18.00 – 20.00 | 18 – 20 |
| Mo | N/A | N/A |
| Ni | 8.00 – 11.00 | 8.00 - 13.00 |
| N | ||
Mechanical values at room temperature
| Mechanical Property | 304 | 304L |
| Tensile strength N/mm² | 525.00 | 485.00 |
| Tensile yield point Rp 0,2 N/mm² | 205.00 | 170.00 |
| Elongation at break A5 % | 35.00 | 35.00 |
Available Tube Product Forms:
Straight Length.
Typical Applications:
Our sanitary tube is ideal for the dairy food and beverage industries where the highest degree purity and cleanliness is essential. It is certified to the requirements of ASTM A270, 3A standards, and most user specifications.
Quality Assurance:
Spezilla's stainless steel sanitary tubes are produced acc. to the following process and inspection to assure our quality:
1. Chemical Composition Analysis Test With 100% PMI.
2. Solution Annealing / Bright Annealed.
3. 100% Hydrostatic Test and 100% Eddy Current Test
4. Mechanical Tests includes Tension Test, Flattening Test, Flaring Test, Hardness Test.
5. Impact Test subject to Standard request.
6. Grain Size Test and Intergranular Corrosion Test.
7. Visual Test and Endoscope Test for Surface Quality Test
Typical Manufacturing Specifications:
ASTM A270
ASTM A269
Also individual customer specifications.
