ASTM A269 Stainless Steel capillary tubes Cold Drawn SS capillary pipes

ASTM A269 Stainless Steel capillary tubes Cold Drawn SS capillary pipes
ASTM A269 Stainless Steel capillary tubes Cold Drawn SS capillary pipes ASTM A269 Stainless Steel capillary tubes Cold Drawn SS capillary pipes ASTM A269 Stainless Steel capillary tubes Cold Drawn SS capillary pipes ASTM A269 Stainless Steel capillary tubes Cold Drawn SS capillary pipes

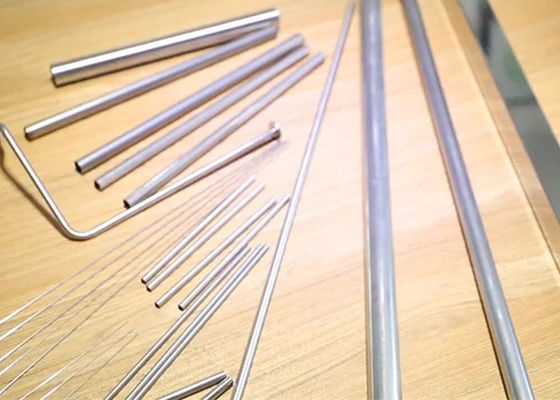

Large Image :  ASTM A269 Stainless Steel capillary tubes Cold Drawn SS capillary pipes

Product Details:
Place of Origin: CHINA
Brand Name: BWSS
Certification: PED, ISO, GOST
Model Number: TP304/TP316L/TP904L
Payment & Shipping Terms:
Minimum Order Quantity: 0.5-1TONS
Price: Negotiable
Packaging Details: Each in PVC bags, than in Bundles
Delivery Time: 20 days
Payment Terms: T/T
Supply Ability: 1000 tons per month
Detailed Product Description
Type: Stainless Steel Capillary Tubes Standard: ASTM/AISI ,GB,JIS,DIN,EN,etc
Application: Liquid Lines Material Grade: SS304 316L
Outer Diameter: 4mm-10mm Wall Thickness: 0.3mm-2mm
Length: Cut Into Pcs Process Method: Welded,precision Rolled,cold Drawn
Surface Finish: 180G, 320G, 400G Satin / Hairline,400G, 500G, 600G Or 800G Mirror Finish Package: Wooden Case
High Light:

stainless steel capillary tube

,

metal capillary tube

ASTM A269 Stainless Steel capillary tubes Cold Drawn SS capillary pipes



The Stainless Steel Capillary Tubes are used while supplying liquids and gases from sensors to measuring instruments. The tubes are used in various critical applications with having inner surface free from oil, grease and dust particles. These tubes are available in different sizes, tolerances and thickness as per the requirements of our clients.


Features
  • Tight tolerances
  • Free from oil & dust particles from inside
  • Rust resistant
Applications
  • Gas and liquid lines
  • Medical instruments (hypodermic needle)
  • Chromatography
  • Measurement in remote thermometer systems (with or without compensation)


Available Grades : 304, 304L, 316, 316L



Available Types : Seamless & Welded





RANGE of Stainless Steel Capillary pipes and tubes:



0.35mm to 6.35mm OD in thickness ranging from 0.1mm to 1.2mm.



TYPE:


SEAMLESS / ERW / WELDED/ SEMI-SEAMLESS / FABRICATED



Grade of stainless steel capillary pipes & tubes:


304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L.



Non-Ferrous Capillary pipes & tubes:


Inconel, Monel, Hastelloy, Copper, Brass, Nickel, Copper-nickel alloys, Copper alloys, nickel alloys, duplex stainless steel and other types of steels.

FORM:
ROUND, STRAIT, HYDRAULIC ETC.

LENGTH:
SINGLE RANDOM, DOUBLE RANDOM , COIL FORM, CUT LENGTH

END:
PLAIN END, BEVELED END.


Capillary tubes with a maximum bore of 0.0158 in., available in a wide range of stainless steels. Sandvik capillary tubes are characterized by tight tolerances, and the inside surface of the tubes is free from oil, grease and other particles. This ensures, for example, an optimized and even flow of liquids and gases from the sensor to the measuring instrument.

Quick Detail:



Manufacturing to: ASTM A269, DIN 17458/EN10216-5 TC1, D3/T3, D4/T3 NACE MR.01.75/77, Cert To EN 10204 3.1
T est: 100% Eddy Test or Hydrostatic Test, UT Test
Delivery Condition: Annealed & Pickled, Annealed & Pickled + Polished



Capillary tubes are used in applications, such as:

  • Chromatography
  • Gas and liquid lines
  • Measurement components in remote thermometer systems (with or without compensation)



Advantage:



•  Advanced production and inspection equipment

•  Top quality control system and service system

•  Professional & Sincerity

•  Competitive Price

•  Good Reputation

•  Timely Delivery





Capillary Pipes Tubes &OCTG, CRA (Corrosion-Resistant Alloy) Seamless Tubes,Stainless Steel , Super Duplex , Duplex , Welded & Seamless, Carbon Steel Seamless Pipes, Tubes, Capillary Pipes & ‘U’ Tubes for applications in oil & gas, LNG, Thermal & Nuclear Power Plants, Chemical Industries, Fertilizers Plants, (petro) chemical, shipbuilding, desalination, water treatment, energy industries, EPC and Pipes for General Engineering Purpose.



1. Products Specification



Stainless Steel capillary tubes for medical needle Grade Straight/ Coil tubing
TP 304, TP 304L, TP 316/316L, TP321, TP316SS TP310S/ Incoloy800/825/600/625/718 Monel400/ K-50 etc.
Stainless Steel capillary tubes for medical needle Standard Straight/ Coil tubing
ASTM, GB, AISI, JIS, DIN,EU
Stainless Steel capillary tubes for medical needle Diameter Straight/ Coil tubing
0.33mm-76mm
Stainless Steel capillary tubes for medical needle Thickness Straight/ Coil tubing
0.1mm-3.0mm
Stainless Steel capillary tubes for medical needle Length Straight/ Coil tubing
Depending on your requirement 50-2000meters
Stainless Steel capillary tubes for medical needle Technique Straight/ Coil tubing
Cold drawing, precision rolling



2. Chemical Element Analysis



Type

Chemical Composition(%)

ASTM

C

Cr

Ni

Mn

P

S

Mo

Si

Cu

N

TP304

≤0.08

18.0-20.0

8.0-11.0

≤2.00

≤0.045

≤0.030

 - - -

≤1.00

 - - -

- - -

TP304L

≤0.035

18.0-20.0

8.0-13.0

≤2.00

≤0.045

≤0.030

 - - -

≤1.00

 - - -

- - -

TP304H

0.04-0.10

18.0-20.0

8.0-11.0

≤2.00

≤0.045

≤0.030

- - -

≤1.00

 - - -

- - -

TP310S

≤0.08

24.0-26.0

19.0-22.0

≤2.00

≤0.045

≤0.030

≤0.75

≤1.00

 - - -

- - -

TP316

≤0.08

16.0-18.0

11.0-14.0

≤2.00

≤0.045

≤0.030

2.00-3.00

≤1.00

 - - -

- - -

TP316L

≤0.035

16.0-18.0

10.0-14.0

≤2.00

≤0.045

≤0.030

2.00-3.00

≤1.00

 - - -

- - -

TP316N

≤0.08

16.0-18.0

11.0-14.0

≤2.00

≤0.045

≤0.030

2.00-3.00

≤1.00

 - - -

0.10-0.16

TP317L

≤0.035

18.0-20.0

11.0-15.0

≤2.00

≤0.045

≤0.030

3.0-4.0

≤1.00

 - - -

- - -

TP321

≤0.08

17.0-19.0

9.0-12.0

≤2.00

≤0.045

≤0.030

- - -

≤1.00

 - - -

≤0.10

TP321H

0.04-0.10

17.0-19.0

9.0-12.0

≤2.00

≤0.045

≤0.030

- - -

≤1.00

 - - -

- - -

TP347

≤0.08

17.0-19.0

9.0-13.0

≤2.00

≤0.045

≤0.030

- - -

≤1.00

 - - -

- - -



ASTM A269 Stainless Steel capillary tubes Cold Drawn SS capillary pipes 0
