Product Details:
Payment & Shipping Terms:
|
| Materials: | TP316L | Specification: | ASTM A269/A213 |
|---|---|---|---|
| Size: | 6.00MM - 38.10MM | Length: | 6096MM |
| Thickness: | 0.50MM - 3.05MM | Surface: | Bright Annealed / BA |
| Quality: | EN10204 3.1 | Product Name: | Bright Annealed Stainless Steel Tube |
| High Light: | steel hydraulic pipe,high pressure hydraulic pipe |
||

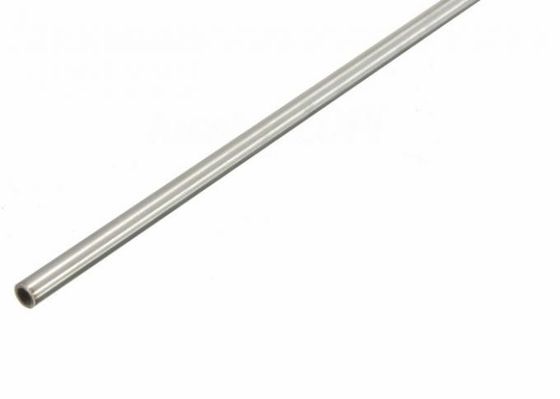

AISI 316L BA Bright Annealed Stainless Steel Tube, 1/2'' X 0.035'' X 20FT, A213/A269
Bright Annealed (BA) is produced by heat-treating (annealing) steel with a controlled atmosphere furnace. After heat-treatment, the steel has a reflective, mirror-like appearance, but may also have some imperfections and cloudiness. BA stainless steel can be buffed to attain a more reflective finish, and is often specified for applications where a highly reflective surface is desired.
Bright annealed tubes, are characterized by tight tolerances, and the inside surface of the tubes is free from oil, grease and other particles. Our bright annealed tubes are widely used in the fields of food & dairy, precision instruments, precise mechanical parts, semiconductor industry, etc.
We provide an extensive range of bright annealed tube, covering outside diameter φ6.0mm～38.1mm in both imperial and metric sizes. Special grades or sizes could be made to order.
Materials: 304, 304L, 316L, 310S, etc.
Specifications: ASTM A213, ASTM A269, etc.
Size Range: O.D.: 6.0mm—38.1mm
W.T.: 0.5mm—2.77mm
Max Length: 10 meter
Advantages:
a. good dimensional accuracy
O.D.: +/-0.05mm, W.T.: +/-0.05mm
b. excellent surface roughness
outside surface: Ra<0.6um, inside surface: Ra<0.3um
Main Equipments:
Cold Drawing Machine with Floating Mandrel
Cold Pilger Machine with Three Roller
Bright Annealing Furnace with Cracked NH3
Ultrasonice Cleaning Machine
Descriptions:
| Item Code: | SPS-SA213-316L-0050-035-BA |
| Tube OD.: | 1/2'' |
| Wall: | 0.035'' |
| Length: | 20' |
| Material: | TP316/316L |
| Standard: | ASME SA213 / ASTM A269 |
| Finish: | BA / Bright Annealed. |
| Type: | Seamless Cold Drawn |
| Certification: | ISO9001 |
| Mill Test Certificate: | EN10204 3.1 |
| Packing: | Sleeved, Ends Capped, Wooden Boxed |
Chemical Compositions:
| Elements | 316L (wt%) |
| C / Max. | 0.035 |
| Mn / Max | 2.00 |
| P / Max | 0.045 |
| S / Max | 0.005 - 0.017 |
| Si / Max | 1.00 |
| Ni | 10.00 - 14.00 |
| Cr | 16.00 - 18.00 |
| Mo | N/A |
| Fe | Bal. |
| Cu | N/A |
| N | N/A |
Mechanical Properties:
| Grade | Tensile Strength (Mpa) |
Yield Strength (Mpa) |
Elongation (%) |
Hardness (HRB) |
316L |
≥485 |
≥170 |
≥35 |
≤90 |
Quality Assurance:
Spezilla's Bright Annealed stainless steel tubing are produced acc. to the following process and inspection to assure our quality:
1. Chemical Composition Analysis Test With 100% PMI.
2. Solution Annealing / Bright Annealed.
3. 100% Hydrostatic Test and 100% Eddy Current Test
4. Mechanical Tests includes Tension Test, Flattening Test, Flaring Test, Hardness Test.
5. Impact Test subject to Standard request.
6. Grain Size Test and Intergranular Corrosion Test.
7. Visual Test and Endoscope Test for Surface Quality Test
8. Ultrasonic Test
Applications:
Spezilla's Bright Annealed Stainless steel tubing is used for many industries that require resistance to high pressures, high temperatures, and corrosive environments. These include, but are not limited to: petrochemical, gas, nuclear, food and beverage, and chemical plants. Various wall thicknesses are available to suit a range of pressure requirements, and several different finishes are available to achieve the desired aesthetic.
1. Oil & Gas Extraction
2. Chemical & Petrochemical
3. Nuclear Power
4. Food & Beverage Processing
5. Automotive
6. Aerospace
