316Ti / UNS precision ground tubing ASTM TYPE S31635 Custom Cutting

316Ti / UNS precision ground tubing  ASTM TYPE S31635 Custom Cutting
316Ti / UNS precision ground tubing  ASTM TYPE S31635 Custom Cutting 316Ti / UNS precision ground tubing  ASTM TYPE S31635 Custom Cutting 316Ti / UNS precision ground tubing  ASTM TYPE S31635 Custom Cutting 316Ti / UNS precision ground tubing  ASTM TYPE S31635 Custom Cutting

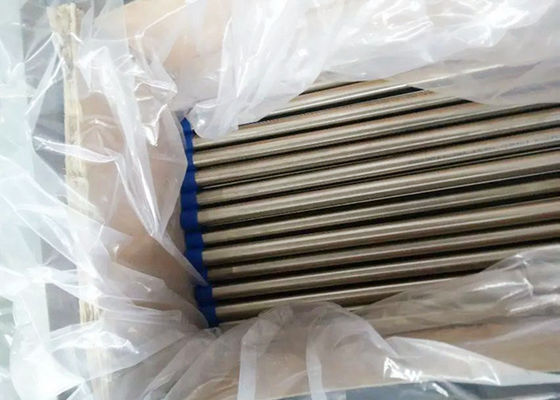

Large Image :  316Ti / UNS precision ground tubing ASTM TYPE S31635 Custom Cutting

Product Details:
Place of Origin: CHINA
Brand Name: SPEZILLA
Certification: ISO9001, TS16949, PED, AD2000
Model Number: WLD
Payment & Shipping Terms:
Minimum Order Quantity: 500KGS
Price: NEGOCIATION
Packaging Details: WOODEN BOXED
Delivery Time: Ex-Mill 15 - 30DAYS
Payment Terms: T/T, L/C
Supply Ability: 100TONS/MONTH
Detailed Product Description
Product Name: Stainless Steel 316TI Tubing Material Grade: 1.4404/316Ti
Shape: Round Size Range: 6.00 - 38.10MM
Specification: EN10217-7 Finishing Options: Bright Annealing, Pickling, Polishing, Custom Cutting
Test Certificate: EN10204 3.1 Packaging: Wooden Box, Bundled, Export Packaging Available
Quality Assurance: 100% ET
High Light:

precision steel pipe

,

stainless steel boiler tubes

316Ti / UNS precision ground tubing ASTM TYPE S31635 Custom Cutting



Available Tube Product Forms:

Straight.
Coiled.
Welded and Cold Redrawn.

Quality Assurance:

Spezilla's 1.4571 / TP316Ti welded precision stainless steel tubes are produced acc. to the following process and inspection to assure our quality:

1. Chemical Composition Analysis Test With 100% PMI.

2. Solution Annealing / Bright Annealed.

3. 100% Hydrostatic Test and 100% Eddy Current Test

4. Mechanical Tests includes Tension Test, Flattening Test, Flaring Test, Hardness Test.

5. Impact Test subject to Standard request.

6. Grain Size Test and Intergranular Corrosion Test.

7. Visual Test and Endoscope Test for Surface Quality Test

Typical Applications:


Flue gas applications



Heat Exchangers

Heating Elements


Typical Manufacturing Specifications:

EN10217-7

ASTM A249


ASTM A269

Also individual customer specifications.





Description:



316Ti/4571 Welded precision stainless steel tubing is a titanium-stabilized, molybdenum-alloyed austenitic alternative to 316L/4404 – mainly used for elevated temperature applications. Due to its titanium-stabilization this product is weldable in all thickness ranges without becoming susceptible to intergranular corrosion. It belongs to the standard CrNiMo stainless steel family.



Due to their molybdenum content, the austenitic CrNiMo standard grades can be used in applications with increased demand for corrosion resistance. Their well-balanced material properties make them suitable for the fabrication of many products. Due to its titanium content, 316Ti/4571 can also be used at elevated temperatures.



316Ti/4571 is commonly available from many stainless steel stockists in many product forms and dimensions. Due to its titanium alloying, polishing options for 316Ti/4571 are limited.




Description:





Item Code: SPW-EN10217-7-1.4571
Tube OD.: 10MM
Wall: 1.0MM
Length: 6000MM
Material: EN 1.4571, ASTM TYPE 316Ti / UNS S31635
Standard: EN10217-7
Finish: BA / Bright Annealed.
Type: Welded
Certification: ISO9001:2015
Mill Test Certificate: EN10204 3.1
Packing: Sleeved, Wooden Boxed



1.4571 Stainless Steel / Spec: EN10217-7 / EN10088



Chemical Element % ( Weight )
Carbon (C) 0.0 - 0.080
Chromium (Cr) 16.50 - 18.50
Manganese (Mn) 0.0 - 2.00
Silicon (Si) 0.0 - 1.00
Phosphorous (P) 0.0 - 0.045
Sulphur (S) 0.0 - 0.015
Mo 2.00 - 2.50
Nickel (Ni) 10.50 - 13.50
Ti Other
Iron (Fe) Balance





Mechanical Property Value
Proof Stress 240 Min MPa
Tensile Strength 540 - 690 MPa
Elongation  40 Min %
Hardness  90 Max HRB








316Ti / UNS precision ground tubing  ASTM TYPE S31635 Custom Cutting 0
