ASTM A270 Sanitary food grade stainless steel tubing 1'' X 0.065'' X 20FT ID/OD 320/180 GRIT Polished

ASTM A270 Sanitary food grade stainless steel tubing 1'' X 0.065'' X 20FT ID/OD 320/180 GRIT Polished
ASTM A270 Sanitary food grade stainless steel tubing 1'' X 0.065'' X 20FT ID/OD 320/180 GRIT Polished ASTM A270 Sanitary food grade stainless steel tubing 1'' X 0.065'' X 20FT ID/OD 320/180 GRIT Polished ASTM A270 Sanitary food grade stainless steel tubing 1'' X 0.065'' X 20FT ID/OD 320/180 GRIT Polished ASTM A270 Sanitary food grade stainless steel tubing 1'' X 0.065'' X 20FT ID/OD 320/180 GRIT Polished

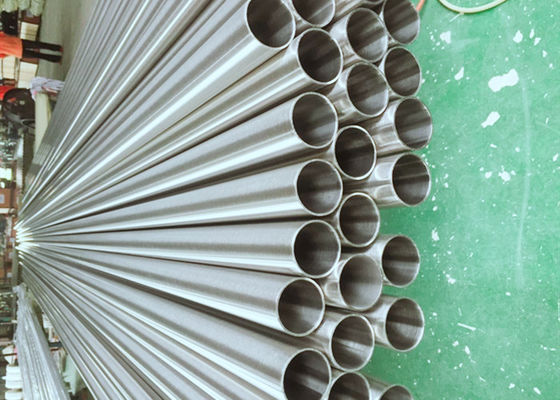

Large Image :  ASTM A270 Sanitary food grade stainless steel tubing 1'' X 0.065'' X 20FT ID/OD 320/180 GRIT Polished

Product Details:
Place of Origin: CHINA
Brand Name: SPEZILLA
Certification: ISO9001, TS16949, PED, AD2000
Model Number: WLD-S
Payment & Shipping Terms:
Minimum Order Quantity: 500KGS
Price: NEGOCIATION
Packaging Details: WOODEN BOXED
Delivery Time: Ex-Mill 15 - 30DAYS
Payment Terms: T/T, L/C
Supply Ability: 100TONS/MONTH
Detailed Product Description
Product Name: Stainless Steel Sanitary Tube Specification: ASTM A270
Material Grade: TP304/304L Type: Welded
Size Range: 1'' X 0.065'' X 20FT Finishing Options: ID/OD Polished 320G/180G
Test Certificate: EN10204 3.1 Packaging: Wooden Boxed, End Capped
Shape: Round Application: Sanitary
High Light:

sanitary stainless tubing

,

sanitary stainless pipe

ASTM A270 Sanitary food grade stainless steel tubing 1'' X 0.065'' X 20FT ID/OD 320/180 GRIT Polished



When you are creating the perfect beverage, you want to have sanitary tubing that you can count on. We have some of the best stainless steel sanitary tubing on the market. All of our tubing meets 3A standards and come in a variety of sizes. Our team has been distributing premier stainless steel sanitary tubing for over 10 years, which means we know the ins and outs of our products and the industry. View our tubing selection below, and contact us if you have any questions.

Sanitary Stainless Steel ASTM A-270 Standards Tubing is available in multiple sizes and grades so that there’s a customized solution for your hygienic fluid operations. To maintain the highest sanitary standards, our sanitary tubing is packed individually in plastic sleeves and covered with plastic caps in both ends.

Bright Annealed Polished Stainless Steel Tubing.
Available in 304 & 316L Stainless Steel alloy.
Stamped with Heat Lot Number.
Manufactured in accordance with 3A Standards for sanitary line process requirements.





Description:



Item Code:SPW-S-304/304L
Tube OD.:25.40MM - 101.60MM
Wall:1.65MM - 2.11MM
Length:6096MM. 20FT
Material:304/304L
Standard:ASTM A270
Finish:Bright Annealed & ID/OD Polished.
Type:Welded & Polished
Certification:ISO9001:2015
Mill Test Certificate:EN10204 3.1
Packing:Wooden Boxed


Chemical composition reference analysis (as weight %)


ChemicalAmount %
 304304L
C≤ 0,08≤ 0,035
P< 0,040< 0,040
S≤ 0,030≤ 0,030
Si≤ 1,0≤ 1,0
Mn≤ 2,0≤ 2,0
Cr18.00 – 20.0018 – 20
MoN/AN/A
Ni8.00 – 11.008.00 - 13.00
N


Mechanical values at room temperature


Mechanical Property304304L
Tensile strength N/mm²525.00485.00
Tensile yield point Rp 0,2 N/mm²205.00170.00
Elongation at break A5 %35.0035.00



Available Tube Product Forms:

Straight Length.


Typical Applications:

Our sanitary tube is ideal for the dairy food and beverage industries where the highest degree purity and cleanliness is essential. It is certified to the requirements of ASTM A270, 3A standards, and most user specifications.




Quality Assurance:

Spezilla's stainless steel sanitary tubes are produced acc. to the following process and inspection to assure our quality:

1. Chemical Composition Analysis Test With 100% PMI.

2. Solution Annealing / Bright Annealed.

3. 100% Hydrostatic Test and 100% Eddy Current Test

4. Mechanical Tests includes Tension Test, Flattening Test, Flaring Test, Hardness Test.

5. Impact Test subject to Standard request.

6. Grain Size Test and Intergranular Corrosion Test.

7. Visual Test and Endoscope Test for Surface Quality Test



Typical Manufacturing Specifications:

ASTM A270



ASTM A269


Also individual customer specifications.
